INA2134UA/2K5E4 - Texas Instruments

Description: Audio Transmitters, Receivers, Transceivers Audio Diff Line Receivers 0dB (G=1)

Download INA2134UA/2K5E4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

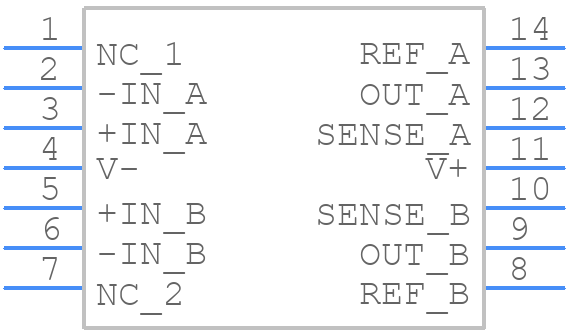

INA2134UA/2K5E4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA2134UA/2K5E4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (-R-PDSO-G14)
click to zoom
3D Models
INA2134UA/2K5E4 - Texas Instruments - 3D model - Small Outline Packages - D (-R-PDSO-G14)
click to zoom

INA2134UA/2K5E4 Details

  • Manufacturer Part Number:

    INA2134UA/2K5E4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 8V TO 36V SINGLE SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Min:

    8 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4 V

  • Neg Supply Voltage-Nom (Vsup):

    -18 V

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

INA2134UA/2K5E4 Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA2134UA/2K5E4 is 670mW at 25°C. However, it's recommended to keep the power dissipation below 500mW to ensure reliable operation.
  • To minimize noise and ensure accurate measurements, it's recommended to follow proper PCB layout techniques such as separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from noisy digital signals. Additionally, use a low-impedance path for the input signals and keep the input traces as short as possible.
  • The recommended input impedance for the INA2134UA/2K5E4 is 1kΩ or higher. This ensures that the input signal is not attenuated and the amplifier operates within its specified gain range.
  • The INA2134UA/2K5E4 is designed for low-frequency applications up to 50kHz. While it may work for higher frequencies, its performance may degrade, and it's not recommended for high-frequency applications above 100kHz.
  • The INA2134UA/2K5E4 does not require calibration. It's a self-contained, zero-drift amplifier that provides accurate measurements without the need for calibration. However, it's recommended to follow proper PCB layout and assembly techniques to ensure accurate measurements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA2134UA/2K5E4 Overview

Use the download button to access the INA2134UA/2K5E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA21, or try a keyword search, such as Other Signal Circuits
