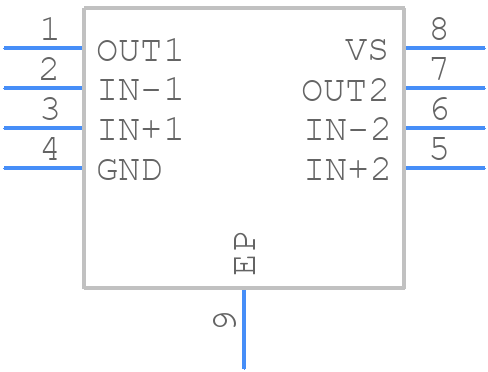

INA2180A1IDSGT - Texas Instruments

INA2180A1IDSGT Details

• Manufacturer Part Number:

  INA2180A1IDSGT

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2020-04-18

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Common Mode Voltage-Max:

  26 V

• Common-mode Reject Ratio-Min:

  84 dB

• Common-mode Reject Ratio-Nom:

  100 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  150 µV

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e4

• Length:

  2 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  YES

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.08,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Slew Rate-Nom:

  2 V/us

• Supply Current-Max:

  0.5 mA

• Supply Voltage Limit-Max:

  6 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  350

• Voltage Gain-Min:

  20

• Voltage Gain-Nom:

  20

• Wideband:

  NO

• Width:

  2 mm
