The maximum voltage that can be applied to the input pins is 26.4V, which is the absolute maximum rating. However, for normal operation, the input voltage should be limited to the supply voltage (VCC) + 0.3V to ensure accurate measurements.
The INA2290A3IDGKT has an internal calibration circuit that allows for calibration of the current sense amplifier. To calibrate, connect the input pins to a known current source, and then use the CAL pin to adjust the gain of the amplifier to match the expected current reading. Refer to the datasheet for more details on the calibration procedure.
The INA2290A3IDGKT has a temperature coefficient of ±0.05% per °C, which means that the accuracy of the current measurements may vary with temperature. To minimize temperature-related errors, it is recommended to use a temperature-compensated current sense resistor and to calibrate the device at the operating temperature range.
The INA2290A3IDGKT has a bandwidth of 350 kHz, which makes it suitable for measuring currents up to 350 kHz. However, for higher-frequency measurements, it is recommended to use a device with a higher bandwidth, such as the INA2291 or INA2292.
The INA2290A3IDGKT has an internal overcurrent protection circuit that limits the output current to 10 mA. However, it is still recommended to add external protection circuitry, such as a fuse or a current-limiting resistor, to prevent damage to the device in case of an overcurrent condition.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA2290A3IDGKT Overview

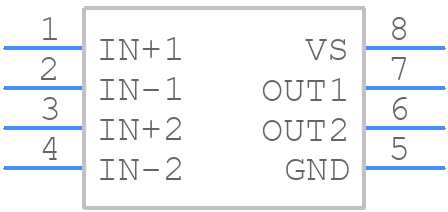

Use the download button to access the INA2290A3IDGKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA22,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
