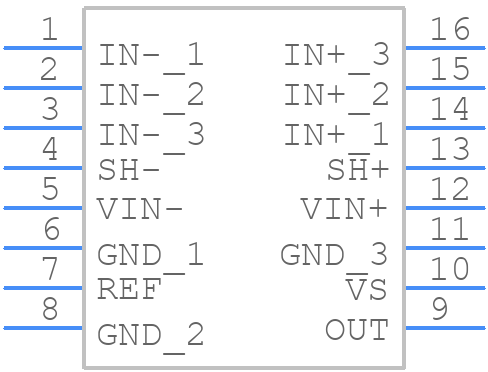

INA250A2PW - Texas Instruments

INA250A2PW Details

• Manufacturer Part Number:

  INA250A2PW

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Pin Count:

  16

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Bias Current-Max (IIB) @25C:

  35 µA

• Common Mode Voltage-Max:

  36 V

• Common-mode Reject Ratio-Min:

  100 dB

• Common-mode Reject Ratio-Nom:

  97 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  50000 µV

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  5 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  YES

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.2 mm

• Slew Rate-Nom:

  0.2 V/us

• Supply Current-Max:

  0.3 mA

• Supply Voltage Limit-Max:

  40 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  50

• Wideband:

  NO

• Width:

  4.4 mm
