Part Image

INA301A1QDGKRQ1 - Texas Instruments

Description: AEC-Q100, 36V, Low-/High-side, Voltage Output CSA with Comparator

Download INA301A1QDGKRQ1 Model

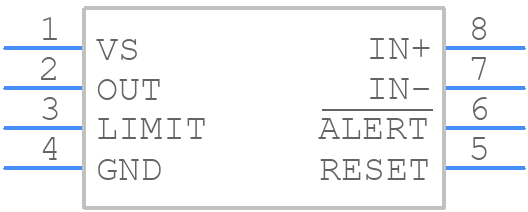

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA301A1QDGKRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK
click to zoom
3D Models
INA301A1QDGKRQ1 - Texas Instruments  - 3D model - Small Outline Packages - DGK
click to zoom

INA301A1QDGKRQ1 Details

  • Manufacturer Part Number:

    INA301A1QDGKRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP,

  • Reach Compliance Code:

    compliant

  • Date Of Intro:

    2016-06-18

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    0.91

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Common Mode Voltage-Max:

    36 V

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Voltage-Max:

    125 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    750 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    4 V/us

  • Supply Current-Max:

    0.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA301A1QDGKRQ1 Overview

Use the download button to access the INA301A1QDGKRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA30, or try a keyword search, such as Comparators

Parts related to INA301A1QDGKRQ1

Showing 0 results

INA301A1QDGKRQ1 Alternates

Showing results

Image Part Number Model
Part Image INA301A1IDGKT Texas Instruments

36V, 550kHz, 4V/µs, high-precision current sense amplifier w/ comparator 8-VSSOP -40 to 125
