INA330AIDGSR - Texas Instruments

Description: IC OPAMP GP 1KHZ RRO 10VSSOP

Download INA330AIDGSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

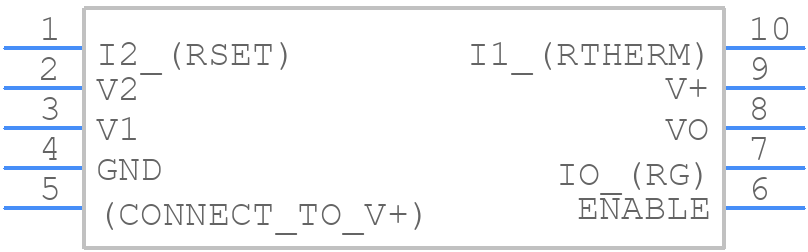

Symbol
INA330AIDGSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA330AIDGSR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS0010A
click to zoom
3D Models
INA330AIDGSR - Texas Instruments - 3D model - Small Outline Packages - DGS0010A
click to zoom

INA330AIDGSR Details

  • Manufacturer Part Number:

    INA330AIDGSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    GREEN, PLASTIC, VSSOP-10

  • Pin Count:

    10

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

INA330AIDGSR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is ±40V, but it's recommended to keep it within the common-mode voltage range of ±12V to ensure accurate measurements.
  • The gain error can be calculated using the formula: Gain Error (%) = (Vout / (Vin * Gain)) * 100, where Vin is the input voltage, Gain is the gain setting (1, 2, 4, or 8), and Vout is the output voltage.
  • The REF pin is used to set the reference voltage for the internal ADC. It can be connected to a voltage reference or a resistive divider to set the desired reference voltage. The REF pin should be decoupled with a capacitor to ensure stability.
  • To configure the INA330 for bidirectional current measurement, connect the input pins (IN+ and IN-) to the sense resistor, and set the gain to 1 or 2. The output voltage will be proportional to the current flowing through the sense resistor, with positive voltage indicating current flowing in one direction and negative voltage indicating current flowing in the other direction.
  • The INA330's accuracy is affected by temperature, with a typical temperature coefficient of ±50 ppm/°C. This means that the gain error and offset voltage will vary with temperature, affecting the overall accuracy of the measurement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA330AIDGSR Overview

Use the download button to access the INA330AIDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA33, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
