Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The INA4181A1QPWRQ1 does not require calibration for accurate current measurement. The device has an internal calibration circuit that sets the gain and offset of the amplifier. However, it's recommended to follow the application note SLVA884 for guidelines on how to verify the accuracy of the current measurement.
The maximum voltage that can be applied to the input pins of the INA4181A1QPWRQ1 is ±60V. Exceeding this voltage can damage the device. It's recommended to use voltage limiting resistors or other protection circuits to prevent overvoltage conditions.
The INA4181A1QPWRQ1 is designed for low-frequency current measurement applications up to 50 kHz. While it can measure currents at higher frequencies, the accuracy and bandwidth of the device may be limited. For high-frequency current measurement applications, it's recommended to use a device specifically designed for high-frequency measurement, such as the INA228 or INA229.
The INA4181A1QPWRQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to follow the thermal management guidelines in the datasheet, including using a heat sink, thermal vias, and thermal pads. Additionally, the application note SLVA883 provides more detailed information on thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA4181A1QPWRQ1 Overview

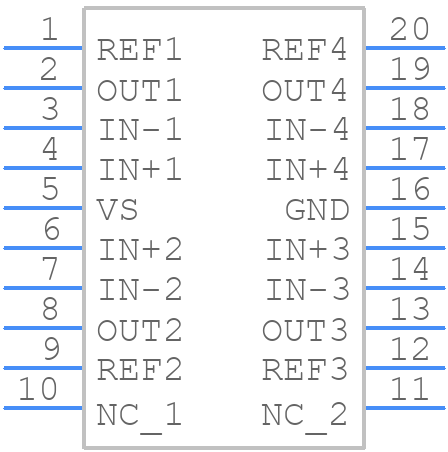

Use the download button to access the INA4181A1QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA41,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
