Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces short and away from each other to minimize noise coupling. Additionally, it's recommended to use a common-mode filter capacitor (e.g., 10nF) between the input pins and GND to reduce common-mode noise.
The INA4290A2IRGVR is specified to operate from -40°C to 125°C. To ensure the device operates within this range, it's essential to provide adequate heat dissipation, such as using a heat sink or thermal pad, and to keep the device away from heat sources. Additionally, consider using thermal interface materials to improve heat transfer between the device and the PCB or heat sink.
Yes, the INA4290A2IRGVR can be used in a single-supply application, but it's essential to ensure that the input common-mode voltage is within the specified range of 1.8V to 5.5V. In single-supply applications, the output voltage swing will be limited, and the device may not be able to achieve its full output range.
The recommended input impedance for the INA4290A2IRGVR is ≤1 kΩ to ensure optimal performance and minimize input-bias current errors. Higher input impedance can lead to increased input-bias current and reduced accuracy.
The gain error and offset voltage of the INA4290A2IRGVR can be calculated using the formulas provided in the datasheet. For example, the gain error can be calculated as (Vout - Vref) / (Vin - Vref), and the offset voltage can be calculated as Vout - (Vin * Gain). Consult the datasheet for more information and specific calculations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA4290A2IRGVR Overview

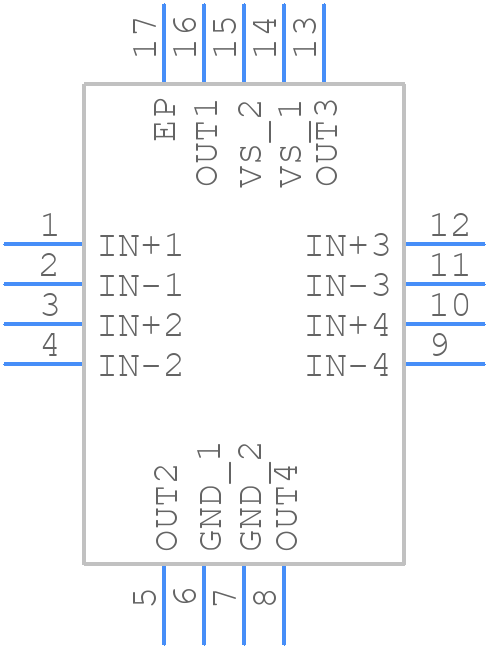

Use the download button to access the INA4290A2IRGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA42,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
