A good PCB layout for optimal thermal performance involves placing the INN3672C-H601-TL near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to optimize the design.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage, current, and temperature ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
When designing an EMI filter for the INN3672C-H601-TL, critical components to consider include the input filter capacitors, common-mode chokes, and differential-mode inductors. It's essential to select components with suitable ratings and characteristics to ensure effective EMI filtering and minimize the risk of electromagnetic interference.
To troubleshoot issues with the INN3672C-H601-TL, start by consulting the datasheet and application notes. Check the device's operating conditions, including voltage, current, and temperature. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If necessary, consult with Power Integrations' technical support or a qualified engineer.
When designing a safe and reliable power supply using the INN3672C-H601-TL, key considerations include ensuring proper isolation, using suitable components, and following safety standards such as UL and IEC. It's also essential to consider overvoltage, overcurrent, and short-circuit protection, as well as thermal management and EMI filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3672C-H601-TL Overview

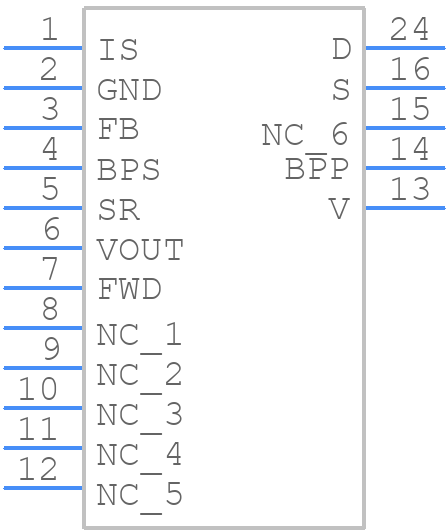

Use the download button to access the INN3672C-H601-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN36,
or try a keyword search, such as Power Management Circuits
