A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device is properly configured, carefully review the datasheet and application notes. Pay attention to the recommended operating conditions, pin configurations, and component selection. It's also essential to consult with Power Integrations' application engineers or technical support team for specific guidance on your application.
The critical components that affect the device's reliability and lifespan include the input and output capacitors, the transformer, and the thermal interface material. Ensure that these components are selected and designed to meet the recommended specifications and operating conditions to ensure optimal reliability and lifespan.
To troubleshoot common issues, start by reviewing the datasheet and application notes. Check the PCB layout, component selection, and operating conditions. Use oscilloscopes and thermal imaging tools to identify the root cause of the issue. Consult with Power Integrations' technical support team or a qualified engineer for guidance on troubleshooting and resolving the issue.
When working with the INN3674C-H601-TL, ensure you follow proper safety precautions to avoid electrical shock, injury, or damage to the device. Always handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat. Ensure the device is properly installed and configured, and follow the recommended operating conditions and safety guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3674C-H601-TL Overview

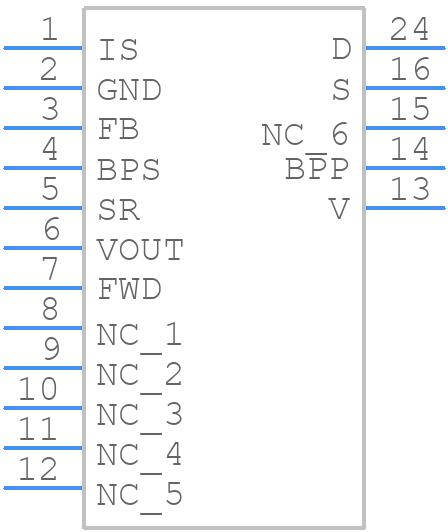

Use the download button to access the INN3674C-H601-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN36,
or try a keyword search, such as Power Management Circuits
