A good PCB layout for optimal thermal performance involves placing the INN3676C-H601-TL near a thermal pad or a heat sink, and ensuring good airflow around the component. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure EMC compliance, follow the recommended layout and grounding guidelines in the datasheet. Additionally, use a metal casing or shielding to enclose the power supply, and ensure that the input and output cables are properly filtered and shielded. Consult with an EMC expert or perform EMC testing to ensure compliance with relevant standards.
The maximum allowed voltage stress on the output capacitors depends on the specific capacitor type and rating. As a general rule, ensure that the output capacitors are rated for at least 1.5 times the maximum output voltage. Consult the capacitor datasheet and perform derating calculations to ensure reliable operation.
To troubleshoot issues with the INN3676C-H601-TL, start by checking the input voltage, output voltage, and current waveforms using an oscilloscope. Verify that the component is properly soldered and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature rise or burning smells. Consult the datasheet and application notes for troubleshooting guides and contact Power Integrations support if necessary.
The INN3676C-H601-TL is a commercial-grade component, and its use in high-reliability or safety-critical applications may require additional testing and validation. Consult with Power Integrations and relevant industry standards (e.g., IEC 61508 or DO-254) to ensure that the component meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INN3676C-H601-TL Overview

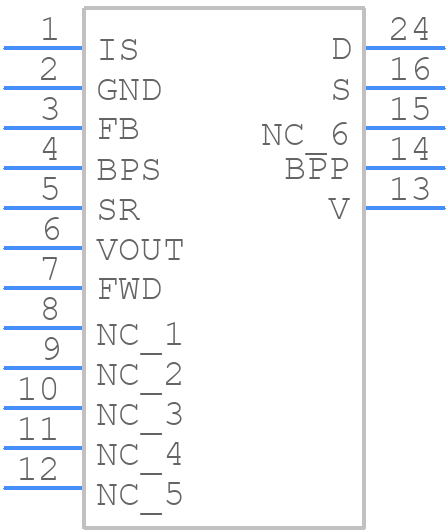

Use the download button to access the INN3676C-H601-TL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INN36,
or try a keyword search, such as Power Management Circuits
