IP4251CZ16-8-TTL,1 - Nexperia

Description: EMI Filter Low Pass RC-Circuit 30dB Flat Style SMD T/R

Download IP4251CZ16-8-TTL,1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

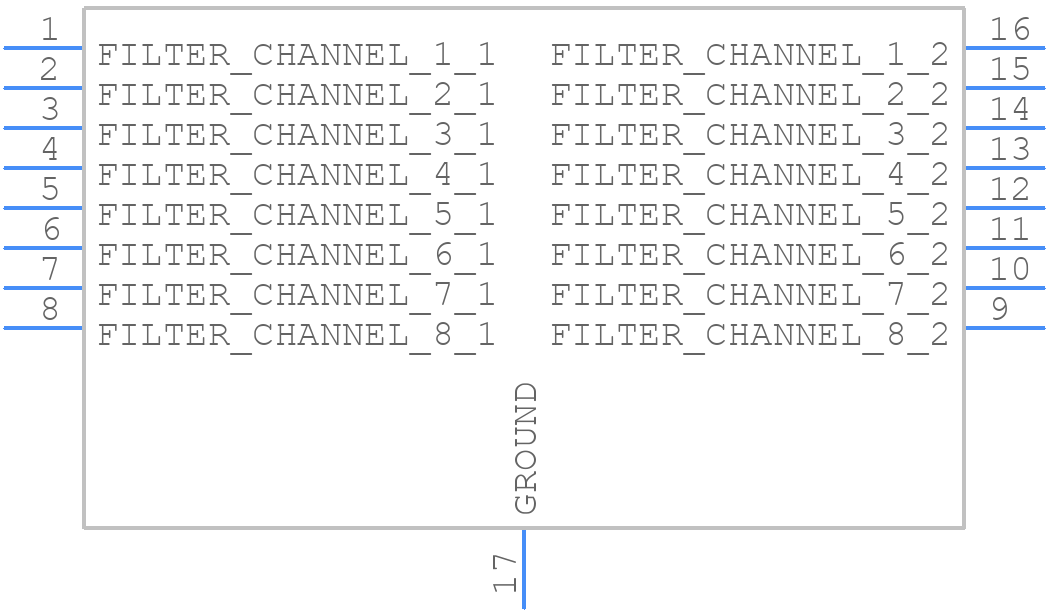

IP4251CZ16-8-TTL,1 - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4251CZ16-8-TTL,1 - Nexperia PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT974-2
click to zoom
3D Models
IP4251CZ16-8-TTL,1 - Nexperia - 3D model - Small Outline No-lead - SOT974-2
click to zoom

IP4251CZ16-8-TTL,1 Details

  • Manufacturer Part Number:

    IP4251CZ16-8-TTL,1

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    QFN, HUSON16, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT974-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    PI-TYPE CIRCUIT

  • Approvals:

    IEC

  • Capacitance:

    10 µF

  • DC Resistance-Max:

    120 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • JESD-609 Code:

    e4

  • Length:

    3.3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5.6 V

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Width:

    1.35 mm

IP4251CZ16-8-TTL,1 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for IP4251CZ16-8-TTL,1 is 2.3V to 5.5V.
  • To ensure reliable operation of IP4251CZ16-8-TTL,1 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range.
  • The maximum current rating for the IP4251CZ16-8-TTL,1 is 100mA per channel.
  • To troubleshoot issues with IP4251CZ16-8-TTL,1, it is recommended to check the power supply voltage, ensure proper termination and loading, and verify that the device is operated within its specified temperature range. Additionally, checking the input and output signals with an oscilloscope can help identify any issues.
  • Yes, IP4251CZ16-8-TTL,1 can be used in a 3.3V system, as it is specified to operate from 2.3V to 5.5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IP4251CZ16-8-TTL,1 Overview

Use the download button to access the IP4251CZ16-8-TTL,1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IP425, or try a keyword search, such as Data Line Filters
