IP4252CZ16-8-TTL,1 - Nexperia

Description: EMI Filter Circuits INTEGRATED 4- 6- AND 8-CH PASS FLTR W/ESD

Download IP4252CZ16-8-TTL,1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

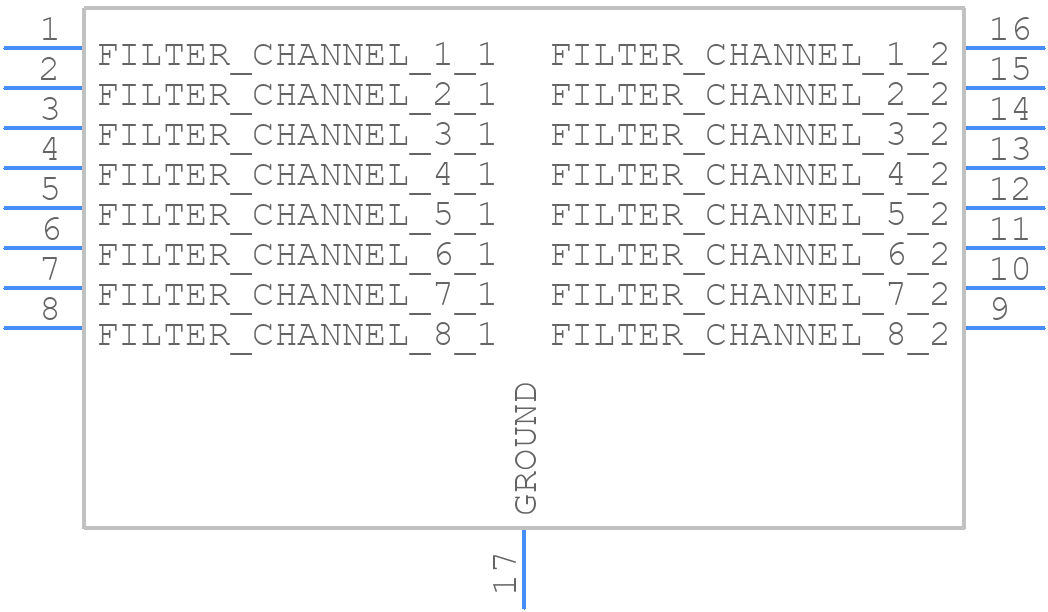

IP4252CZ16-8-TTL,1 - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4252CZ16-8-TTL,1 - Nexperia PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT1168-1
click to zoom
3D Models
IP4252CZ16-8-TTL,1 - Nexperia - 3D model - Small Outline No-lead - SOT1168-1
click to zoom

IP4252CZ16-8-TTL,1 Details

  • Manufacturer Part Number:

    IP4252CZ16-8-TTL,1

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    QFN, HUSON16, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT974-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    PI-TYPE CIRCUIT

  • Approvals:

    IEC

  • Capacitance:

    12 µF

  • DC Resistance-Max:

    48 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • JESD-609 Code:

    e4

  • Length:

    3.3 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5.6 V

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Width:

    1.35 mm

IP4252CZ16-8-TTL,1 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for IP4252CZ16-8-TTL,1 is a QFN16 package with a 3x3mm body size and 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask design.
  • To ensure reliable operation of IP4252CZ16-8-TTL,1 in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, such as providing adequate heat dissipation paths and avoiding thermal hotspots.
  • The maximum allowable voltage on the input pins of IP4252CZ16-8-TTL,1 is 5.5V, which is the absolute maximum rating. However, for normal operation, the recommended input voltage is 3.3V or 5V, depending on the specific application.
  • Yes, IP4252CZ16-8-TTL,1 is designed for high-speed data transmission applications, with a maximum data rate of 100 Mbps. However, the actual data rate may vary depending on the specific application and system design.
  • To troubleshoot issues with IP4252CZ16-8-TTL,1, it is recommended to follow a systematic approach, including reviewing the datasheet, checking the PCB design and layout, verifying the power supply and input signals, and using diagnostic tools such as oscilloscopes or logic analyzers.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IP4252CZ16-8-TTL,1 Overview

Use the download button to access the IP4252CZ16-8-TTL,1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IP425, or try a keyword search, such as Data Line Filters

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
