IP4254CZ8-4-TTL,13 - Nexperia

Description: EMI Filter Circuits INTEGRATED 4- 6- AND 8-CH PASS FLTR W/ESD

Download IP4254CZ8-4-TTL,13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

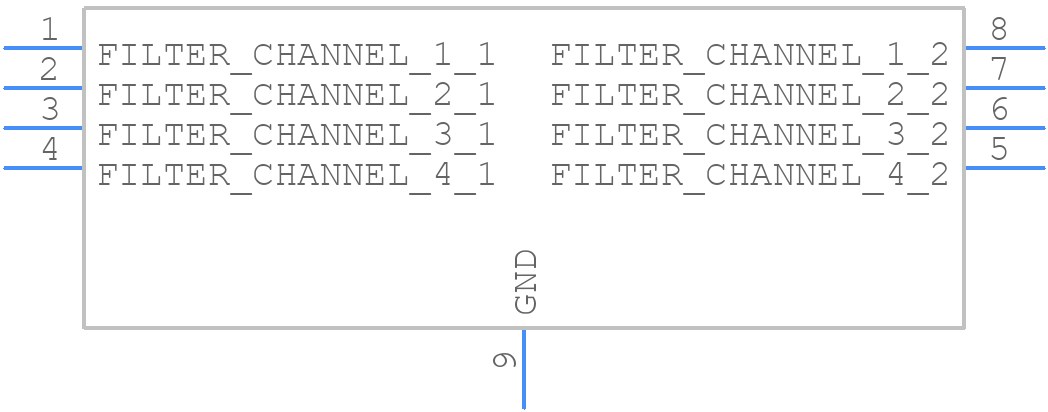

IP4254CZ8-4-TTL,13 - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4254CZ8-4-TTL,13 - Nexperia PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT972-2
click to zoom
3D Models
IP4254CZ8-4-TTL,13 - Nexperia - 3D model - Small Outline No-lead - SOT972-2
click to zoom

IP4254CZ8-4-TTL,13 Details

  • Manufacturer Part Number:

    IP4254CZ8-4-TTL,13

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Package Description:

    QFN, HUSON8, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT972-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    PI-TYPE CIRCUIT

  • Approvals:

    IEC

  • Capacitance:

    30 µF

  • DC Resistance-Max:

    120 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • JESD-609 Code:

    e4

  • Length:

    1.7 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Voltage:

    5.6 V

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Width:

    1.35 mm

IP4254CZ8-4-TTL,13 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for IP4254CZ8-4-TTL,13 is 4.5V to 5.5V.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within the recommended temperature range of -40°C to 125°C, and consider using thermal management techniques such as heat sinks or thermal interfaces.
  • The maximum current rating for the IP4254CZ8-4-TTL,13 is 100mA per channel.
  • To handle ESD protection for IP4254CZ8-4-TTL,13, ensure that the device is handled and stored in an ESD-protected environment, and consider using ESD protection devices such as TVS diodes or ESD arrays.
  • For optimal performance and signal integrity, follow good PCB design practices such as using short traces, minimizing signal reflections, and using ground planes to reduce noise and EMI.
