IP4264CZ8-20-TTL - Nexperia

Description: NEXPERIA - IP4264CZ8-20-TTL - DIODE, SIM ESD, 3-CH, 20PF, SOT972-2

Download IP4264CZ8-20-TTL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

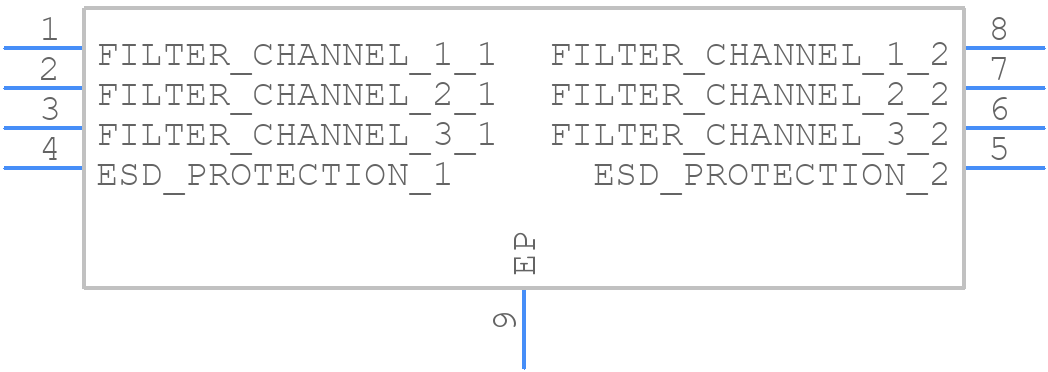

Symbol
IP4264CZ8-20-TTL - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4264CZ8-20-TTL - Nexperia PCB footprint - Small Outline No-lead - Small Outline No-lead - HUSON8
click to zoom
3D Models
IP4264CZ8-20-TTL - Nexperia - 3D model - Small Outline No-lead - HUSON8
click to zoom

IP4264CZ8-20-TTL Details

  • Manufacturer Part Number:

    IP4264CZ8-20-TTL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Capacitance:

    17 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.55 mm

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    3

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC/EPOXY

  • Rated Voltage:

    5.5 V

  • Screening Level:

    IEC 61000-4-2; IEC-60134

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Width:

    1.45 mm

IP4264CZ8-20-TTL Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for IP4264CZ8-20-TTL is 4.5 V to 5.5 V.
  • To ensure proper power-on and power-off, Nexperia recommends following a specific power-up and power-down sequence, as outlined in the datasheet, to prevent damage to the device.
  • The maximum current rating for the IP4264CZ8-20-TTL is 20 mA per output, with a total device current of 100 mA.
  • Nexperia recommends following proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging to prevent damage.
  • The thermal resistance (Rth(j-a)) of the IP4264CZ8-20-TTL is 125 K/W, which is typical for a SO8 package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IP4264CZ8-20-TTL Overview

Use the download button to access the IP4264CZ8-20-TTL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IP426, or try a keyword search, such as Data Line Filters
