- Part Number IP4283CZ10-TBR
- Manufacturer Nexperia
- Pin Count 10
- Part Category Diode
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - SOT 1176-1
- Released Date Aug 23, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IP4283CZ10-TBR Details
-
Manufacturer Part Number:
IP4283CZ10-TBR
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOT-1176-1, DFN2510A-10
-
Country Of Origin:
Mainland China, Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Date Of Intro:
2017-02-01
-
Manufacturer:
Nexperia
-
YTEOL:
5.95
IP4283CZ10-TBR Frequently Asked Questions (FAQs)
-
Nexperia provides a recommended PCB layout in the application note AN11542, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
Follow the soldering and mounting guidelines provided in the Nexperia application note AN11543, which includes recommendations for soldering temperature, time, and techniques, as well as PCB design considerations for reliable mounting.
-
The IP4283CZ10-TBR has a thermal pad that must be connected to a thermal ground plane on the PCB to ensure effective heat dissipation. Additionally, the device's thermal resistance (Rth(j-a)) should be considered when designing the PCB and selecting a heat sink, if necessary.
-
Yes, the IP4283CZ10-TBR is qualified according to the AEC-Q100 standard for automotive applications and is suitable for high-reliability applications. However, it's essential to consult with Nexperia and follow their guidelines for using the device in such applications.
-
Nexperia provides a troubleshooting guide in the application note AN11544, which includes a step-by-step approach to identifying and resolving common issues with the IP4283CZ10-TBR. Additionally, engineers can contact Nexperia's technical support for further assistance.
Trust Checks
Expert Contribution
System Verified
Community Approved
IP4283CZ10-TBR Overview

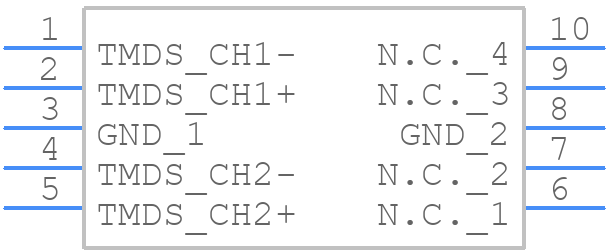

Use the download button to access the IP4283CZ10-TBR schematic symbol, PCB footprint, and 3D model.
