IP4283CZ10-TT,118 - Nexperia

Description: ESD Suppressors / TVS Diodes Diode TVS Single Uni-Dir 10-Pin

Download IP4283CZ10-TT,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

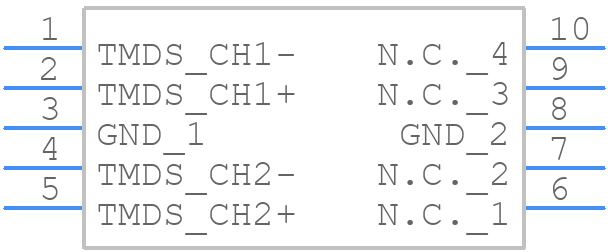

IP4283CZ10-TT,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4283CZ10-TT,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP10 (SOT552-1
click to zoom
3D Models
IP4283CZ10-TT,118 - Nexperia - 3D model - Small Outline Packages - TSSOP10 (SOT552-1
click to zoom

IP4283CZ10-TT,118 Details

  • Manufacturer Part Number:

    IP4283CZ10-TT,118

  • Brand Name:

    Nexperia

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    S-PDSO-G10

  • Pin Count:

    10

  • Manufacturer Package Code:

    SOT552-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    LOW CAPACITANCE

  • Breakdown Voltage-Max:

    9 V

  • Breakdown Voltage-Min:

    6 V

  • Breakdown Voltage-Nom:

    7.5 V

  • Clamping Voltage-Max:

    9.5 V

  • Configuration:

    SINGLE, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    36.1 W

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    IEC-60134; IEC-61000-4-2, 4-5

  • Reverse Current-Max:

    1 µA

  • Reverse Test Voltage:

    3 V

  • Surface Mount:

    YES

  • Technology:

    ZENER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

IP4283CZ10-TT,118 Frequently Asked Questions (FAQs)

  • NXP recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • To ensure EMC compliance, NXP recommends following the guidelines outlined in the IP4283CZ10-TT,118 datasheet, including proper PCB layout, decoupling, and shielding. Additionally, consider using a common-mode choke and EMI filters to minimize emissions.
  • NXP recommends using a high-quality, low-ESR ceramic capacitor with a value of 4.7 μF to 10 μF, depending on the specific application requirements. X5R or X7R dielectric capacitors are suitable for this device.
  • To troubleshoot OCP issues, check the input voltage, output current, and sense resistor values. Ensure the sense resistor is properly connected and the OCP threshold is set correctly. Consult the datasheet and application notes for more information.
  • The recommended operating temperature range for the IP4283CZ10-TT,118 is -40°C to 125°C. However, the device can operate up to 150°C for short periods during startup or fault conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IP4283CZ10-TT,118 Overview

Use the download button to access the IP4283CZ10-TT,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IP428, or try a keyword search, such as Transient Suppressors
