IP4786CZ32S - Nexperia

Description: NXP - IP4786CZ32S - DIODE, ESD, HDMI TX INTERFACE, SOT1318

Download IP4786CZ32S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

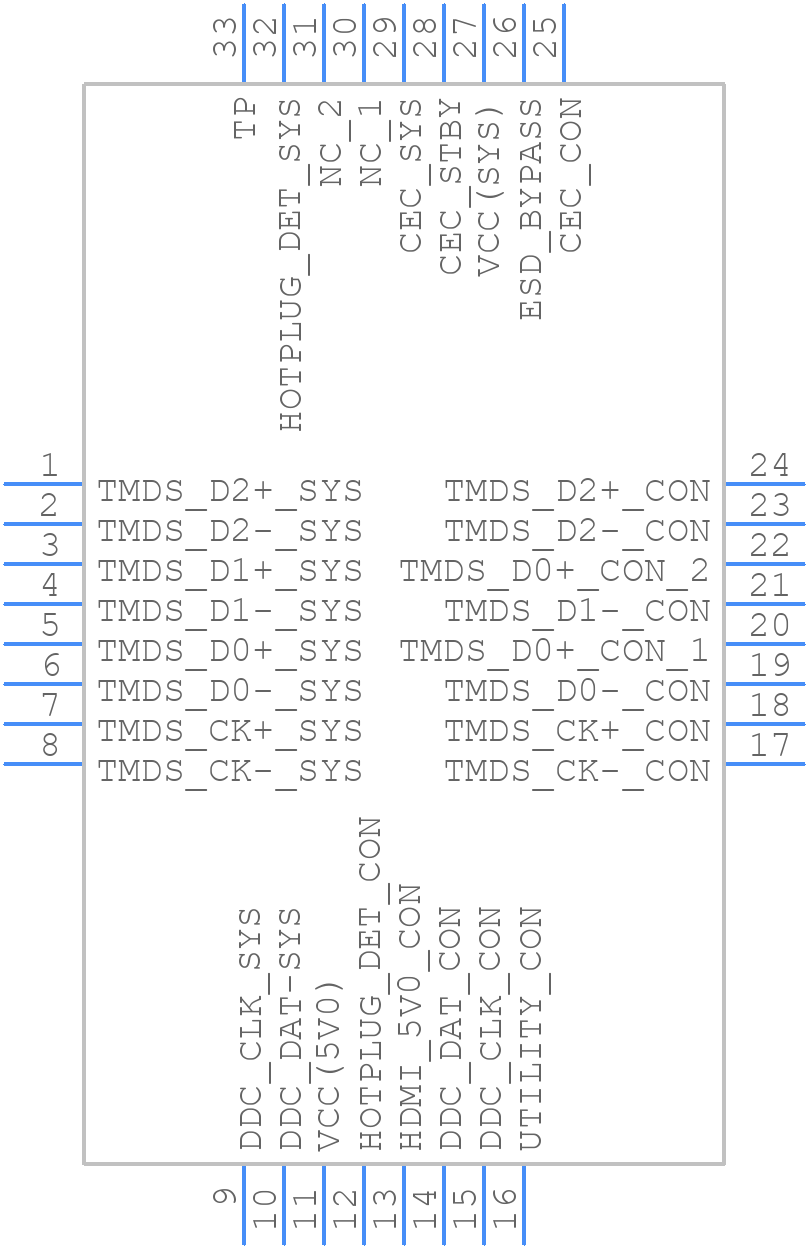

IP4786CZ32S - Nexperia - PCB symbol
click to zoom
PCB Footprints
IP4786CZ32S - Nexperia PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HXQFN32
click to zoom
3D Models
IP4786CZ32S - Nexperia - 3D model - Quad Flat No-Lead - HXQFN32
click to zoom

IP4786CZ32S Details

  • Manufacturer Part Number:

    IP4786CZ32S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Time@Peak Reflow Temperature-Max (s):

    30
