Part Image

IPB025N10N3GATMA1 - Infineon

Description: MOSFET N-ch OptiMOS3 100V 180A TO263-7

Download IPB025N10N3GATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

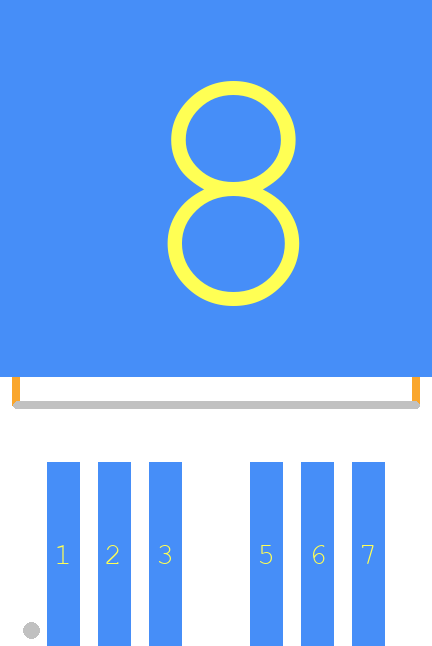

IPB025N10N3GATMA1 - Infineon PCB footprint - Other - Other - PG-TO263-7-3_2
click to zoom
3D Models
IPB025N10N3GATMA1 - Infineon  - 3D model - Other - PG-TO263-7-3_2
click to zoom

IPB025N10N3GATMA1 Details

  • Manufacturer Part Number:

    IPB025N10N3GATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    D2PAK

  • Package Description:

    TO-263, 7 PIN

  • Pin Count:

    4

  • Country Of Origin:

    Malaysia, South Korea

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    1000 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    180 A

  • Drain-source On Resistance-Max:

    0.0025 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    300 W

  • Pulsed Drain Current-Max (IDM):

    720 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPB025N10N3GATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for IPB025N10N3GATMA1 is -40°C to 150°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
  • The recommended gate resistor value for IPB025N10N3GATMA1 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, IPB025N10N3GATMA1 is qualified according to AEC-Q101, making it suitable for high-reliability applications such as automotive systems.
  • To protect the device from ESD, handle the device by the body, use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded.
