IPBE65R115CFD7A - Infineon

Description: N-CH 650V 21A 103mOhm D²-PAK7pin

Download IPBE65R115CFD7A Model

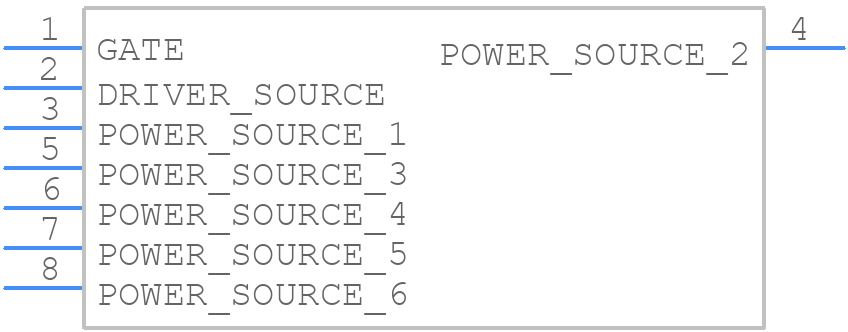

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPBE65R115CFD7A - Infineon PCB footprint - Other - Other - PG-TO263-7-11_1
click to zoom

IPBE65R115CFD7A Details

  • Manufacturer Part Number:

    IPBE65R115CFD7A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Germany, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Avalanche Energy Rating (Eas):

    97 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    21 A

  • Drain-source On Resistance-Max:

    0.115 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-263

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    7

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    114 W

  • Pulsed Drain Current-Max (IDM):

    82 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IPBE65R115CFD7A Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPBE65R115CFD7A is -40°C to 150°C.
  • To ensure reliability, follow the recommended thermal management guidelines, such as using a heat sink, and ensure the device is operated within the specified thermal boundaries.
  • The recommended gate drive voltage for the IPBE65R115CFD7A is 15V, but it can operate with a gate drive voltage range of 10V to 20V.
  • Use a suitable overvoltage protection (OVP) and overcurrent protection (OCP) circuit to prevent damage to the device. Additionally, ensure the device is operated within the specified maximum ratings.
  • The typical turn-on time (ton) is around 10ns, and the typical turn-off time (toff) is around 20ns, but these values can vary depending on the specific application and operating conditions.
