IPBS-105-01-T-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

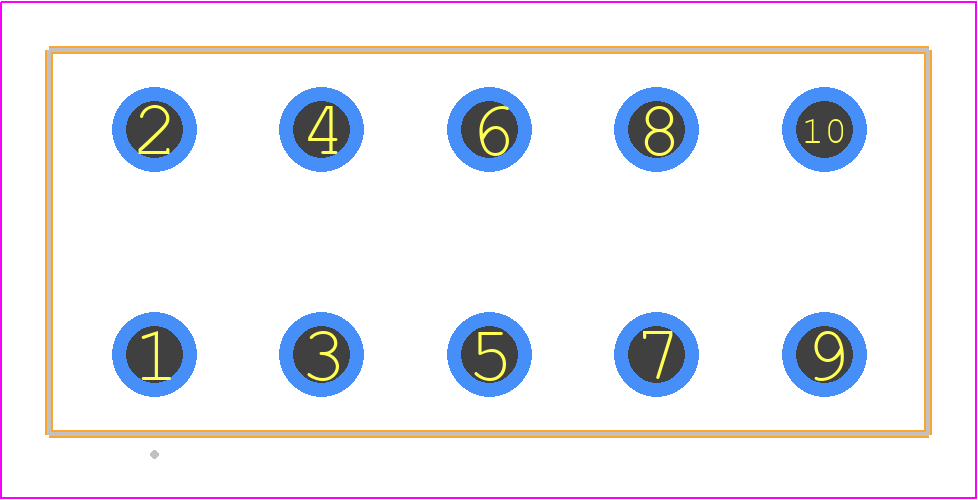

IPBS-105-01-T-D - SAMTEC PCB footprint - Other - Other - IPBS-105-01-T-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBS-105-01-T-D
Part Number IPBS-105-01-T-D
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPBS-105-01-T-D
Released Date Jan 14, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBS-105-01-T-D Details

Manufacturer Part Number:
IPBS-105-01-T-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
POLARIZED, SHROUDED
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
10

IPBS-105-01-T-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBS-105-01-T-D is 2-3 in-lbs (0.2-0.3 Nm).
Yes, the IPBS-105-01-T-D is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.
The maximum operating temperature for the IPBS-105-01-T-D is 125°C (257°F).
Yes, the IPBS-105-01-T-D is RoHS and REACH compliant, meeting the requirements of the European Union's directives on the restriction of hazardous substances in electrical and electronic equipment.
Yes, the IPBS-105-01-T-D is designed to operate in humid environments, but it's recommended to follow Samtec's guidelines for humidity testing and to consult with a Samtec representative for specific application guidance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPBS-105-01-T-D Overview

Use the download button to access the IPBS-105-01-T-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPBS-, or try a keyword search, such as Power Connectors
