IPBS-105-02-T-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

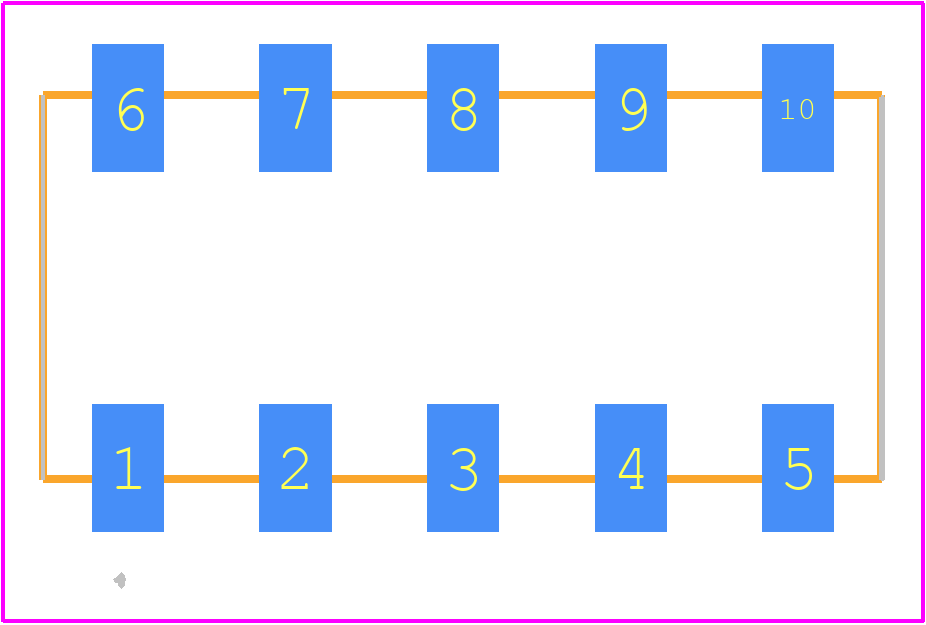

IPBS-105-02-T-D - SAMTEC PCB footprint - Other - Other - IPBS-105-02-T-D-1

click to zoom

3D Models

IPBS-105-02-T-D - SAMTEC - 3D model - Other - IPBS-105-02-T-D-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBS-105-02-T-D
Part Number IPBS-105-02-T-D
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPBS-105-02-T-D-1
Released Date Jul 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBS-105-02-T-D Details

Manufacturer Part Number:
IPBS-105-02-T-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 2 Days
Manufacturer:
Samtec Inc
YTEOL:
7.78
Additional Feature:
POLARIZED, SHROUDED
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10

IPBS-105-02-T-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBS-105-02-T-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBS-105-02-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBS-105-02-T-D connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The IPBS-105-02-T-D connector has a moisture-sensitive level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or exposure to high-pressure water jets. For harsh environments, consider using a connector with a higher MSL rating or additional sealing measures.
The recommended mating cycle for the IPBS-105-02-T-D connector is 500-1000 cycles, depending on the application and environmental conditions. Exceeding this cycle count may affect the connector's reliability and performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

IPBS-105-02-T-D Overview

Use the download button to access the IPBS-105-02-T-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPBS-, or try a keyword search, such as Power Connectors
