The recommended torque is 1.5-2.5 in-lbs (0.17-0.28 Nm) for the screws on the IPBS-110-01-T-D connector, as specified in the Samtec application notes.
Yes, the IPBS-110-01-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their application notes for proper mounting and screw torque to ensure reliable performance.
The maximum operating temperature for the IPBS-110-01-T-D connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to derate the connector's performance at higher temperatures.
The IPBS-110-01-T-D connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP rating) for such applications.
The recommended mating cycle for the IPBS-110-01-T-D connector is 500-1000 cycles, depending on the application and environmental conditions. Exceeding this cycle count may affect the connector's reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPBS-110-01-T-D Overview

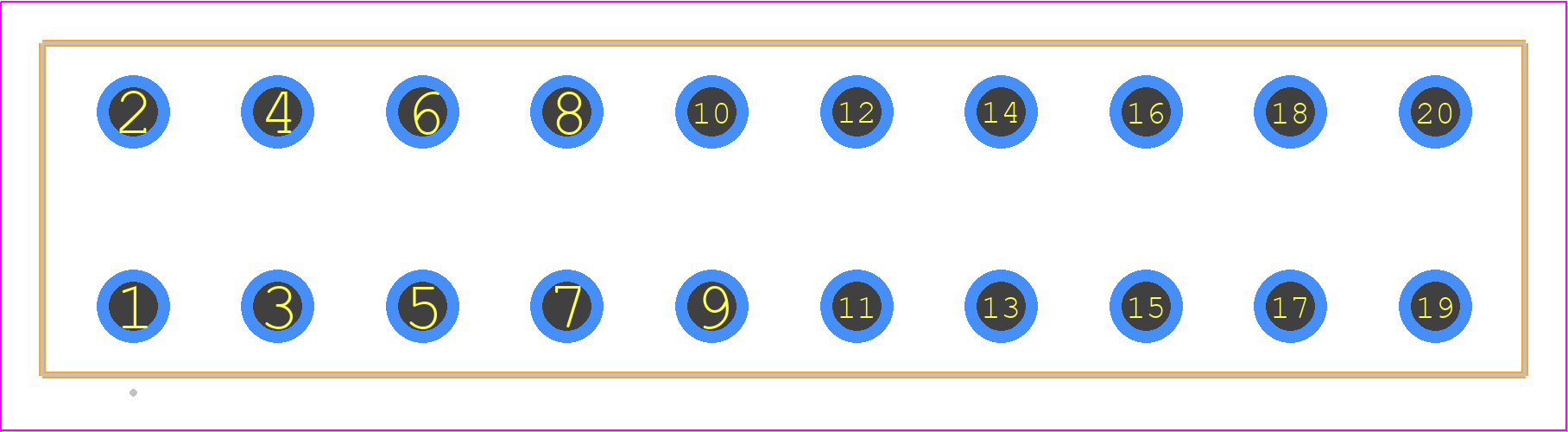

Use the download button to access the IPBS-110-01-T-D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IPBS-,
or try a keyword search, such as Power Connectors
