IPBS-115-01-T-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

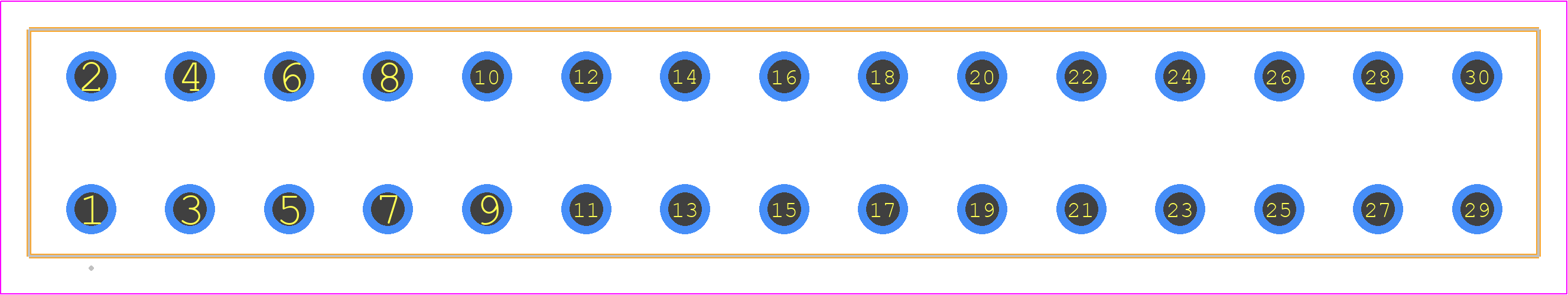

PCB Footprints

IPBS-115-01-T-D - SAMTEC PCB footprint - Other - Other - IPBS-115-01-T-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBS-115-01-T-D
Part Number IPBS-115-01-T-D
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - IPBS-115-01-T-D
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBS-115-01-T-D Details

Manufacturer Part Number:
IPBS-115-01-T-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
7.75
Body Breadth:
0.378 inch
Body Depth:
0.48 inch
Body Length:
2.515 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P30
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Terminal Length:
0.155 inch
Termination Type:
SOLDER
Total Number of Contacts:
30

IPBS-115-01-T-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBS-115-01-T-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBS-115-01-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBS-115-01-T-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
The IPBS-115-01-T-D connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for such applications.
The recommended mating cycle for the IPBS-115-01-T-D connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.
