IPBT-105-H2-T-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

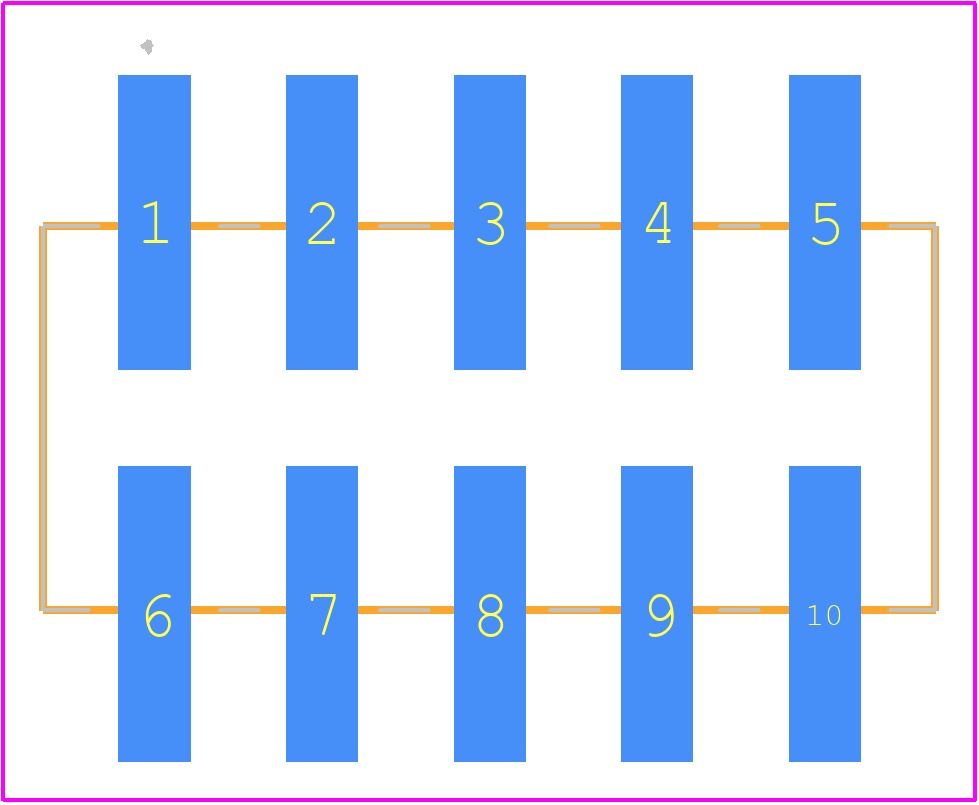

IPBT-105-H2-T-D - SAMTEC PCB footprint - Other - Other - IPBT-105-H2-T-D-1

click to zoom

3D Models

IPBT-105-H2-T-D - SAMTEC - 3D model - Other - IPBT-105-H2-T-D-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBT-105-H2-T-D
Part Number IPBT-105-H2-T-D
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPBT-105-H2-T-D-1
Released Date Jul 26, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBT-105-H2-T-D Details

Manufacturer Part Number:
IPBT-105-H2-T-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
4 Weeks
Manufacturer:
Samtec Inc
YTEOL:
0
Additional Feature:
POWER MATE, POLARIZED, SHROUDED, LATCHED
Body Breadth:
0.424 inch
Body Length:
0.878 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P10
Contact Finish Mating:
MATTE TIN
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
CSA, UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
10
UL Flammability Code:
94V-0

IPBT-105-H2-T-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBT-105-H2-T-D connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBT-105-H2-T-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBT-105-H2-T-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at higher temperatures.
The IPBT-105-H2-T-D connector has a moisture sensitivity level (MSL) rating of 1, which means it can withstand normal humidity levels. However, it's not designed for immersion in water or extreme humidity. If you need a connector for wet environments, consider Samtec's sealed or waterproof options.
Samtec provides recommended PCB layout and footprint guidelines in their datasheet and application notes. It's essential to follow these guidelines to ensure proper connector mating and to prevent damage to the connector or PCB.

Trust Checks

Expert Contribution

System Verified

Community Approved

IPBT-105-H2-T-D Overview

Use the download button to access the IPBT-105-H2-T-D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPBT-, or try a keyword search, such as Power Connectors
