IPBT-108-H1-T-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

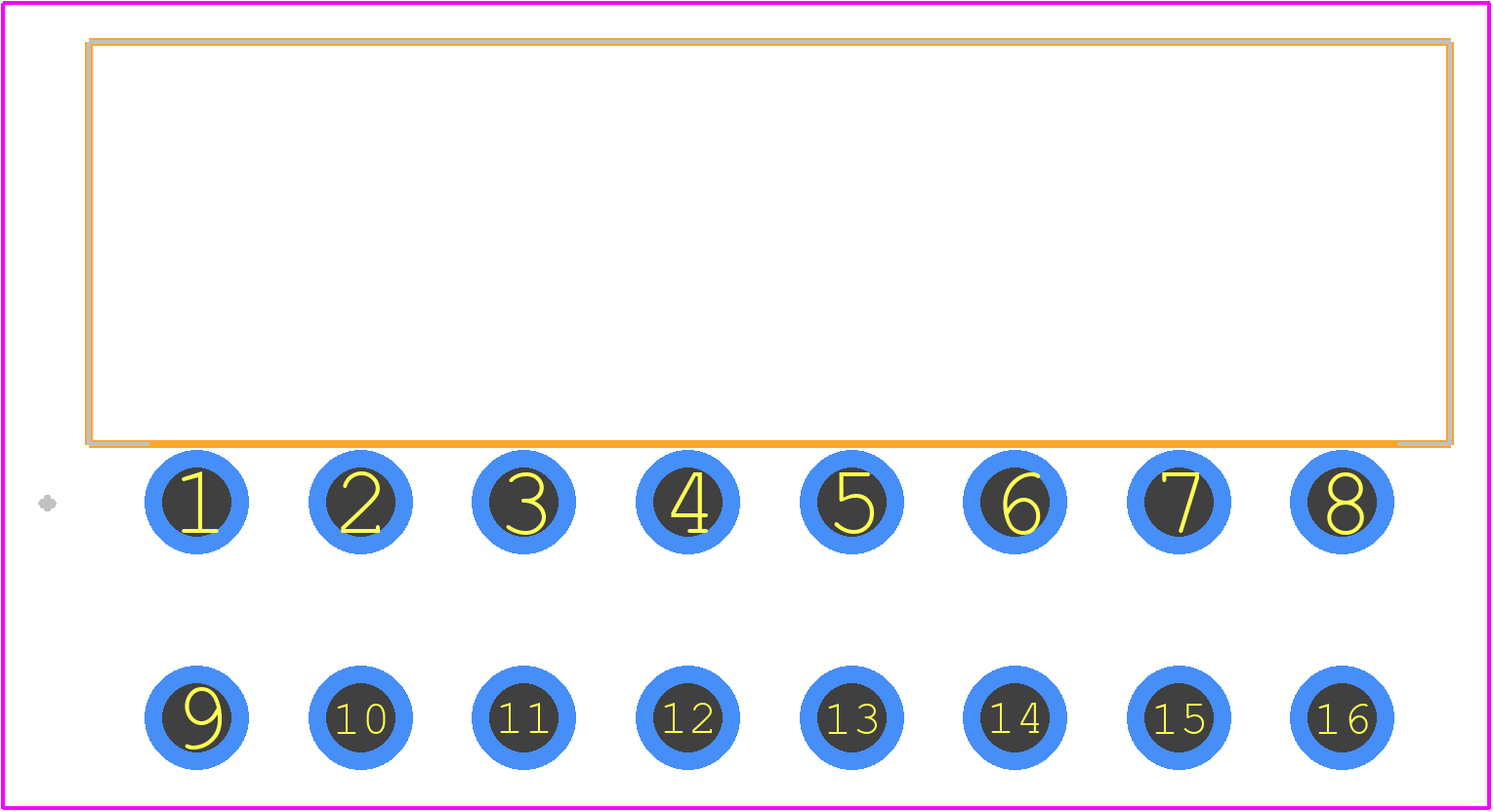

IPBT-108-H1-T-D-RA - SAMTEC PCB footprint - Other - Other - IPBT-108-H1-T-D-RA-2

click to zoom

3D Models

IPBT-108-H1-T-D-RA - SAMTEC - 3D model - Other - IPBT-108-H1-T-D-RA-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBT-108-H1-T-D-RA
Part Number IPBT-108-H1-T-D-RA
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - IPBT-108-H1-T-D-RA-2
Released Date Aug 6, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBT-108-H1-T-D-RA Details

Manufacturer Part Number:
IPBT-108-H1-T-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
4 Weeks
Manufacturer:
Samtec Inc
YTEOL:
0
Additional Feature:
POLARIZED, SHROUDED
Body Breadth:
0.424 inch
Body Length:
1.373 inch
Body/Shell Style:
PLUG
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P16
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
CSA, UL
Terminal Length:
0.147 inch
Termination Type:
SOLDER
Total Number of Contacts:
16

IPBT-108-H1-T-D-RA Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBT-108-H1-T-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBT-108-H1-T-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the IPBT-108-H1-T-D-RA connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
The IPBT-108-H1-T-D-RA connector is not designed for use in humid or wet environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for applications that require resistance to moisture or water.
The recommended mating cycle for the IPBT-108-H1-T-D-RA connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.

Trust Checks

Expert Contribution

System Verified

Community Approved

IPBT-108-H1-T-D-RA Overview

Use the download button to access the IPBT-108-H1-T-D-RA schematic symbol, PCB footprint, and 3D model.
