IPBT-108-H1-T-S-K - SAMTEC

Description: CONN HEADER VERT 8POS 4.20MM

Download IPBT-108-H1-T-S-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPBT-108-H1-T-S-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

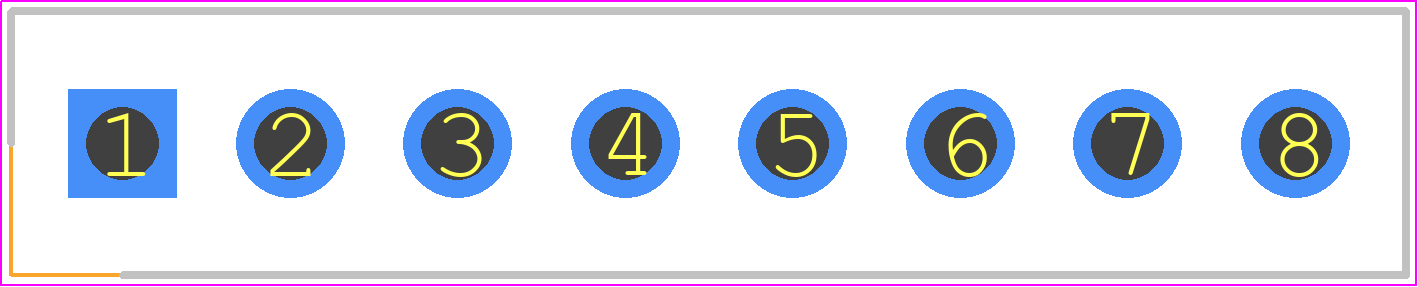

IPBT-108-H1-T-S-K - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - IPBT-108-H1-T-S-K
click to zoom
3D Models
IPBT-108-H1-T-S-K - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - IPBT-108-H1-T-S-K
click to zoom

IPBT-108-H1-T-S-K Details

  • Manufacturer Part Number:

    IPBT-108-H1-T-S-K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    5 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • JESD-609 Code:

    e3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C
