IPBT-110-H1-T-D-GP footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

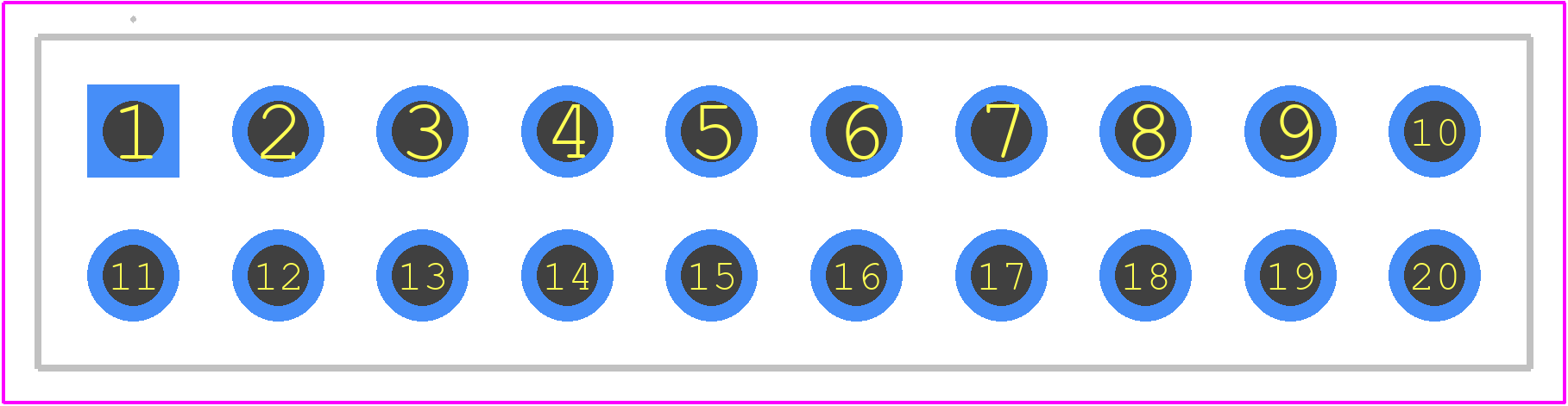

IPBT-110-H1-T-D-GP - SAMTEC PCB footprint - Other - Other - IPBT-110-H1-T-D-GP-1

click to zoom

3D Models

IPBT-110-H1-T-D-GP - SAMTEC - 3D model - Other - IPBT-110-H1-T-D-GP-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPBT-110-H1-T-D-GP
Part Number IPBT-110-H1-T-D-GP
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - IPBT-110-H1-T-D-GP-1
Released Date Aug 3, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPBT-110-H1-T-D-GP Details

Manufacturer Part Number:
IPBT-110-H1-T-D-GP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7.45
Additional Feature:
POWER MATE, LATCHED, POLARIZED, SHROUDED
Body Breadth:
0.424 inch
Body Length:
1.703 inch
Body/Shell Style:
PLUG
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Arrangement:
S0P20
Contact Finish Mating:
MATTE TIN OVER NICKEL (50)
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
CSA, UL
Terminal Length:
0.13 inch
Termination Type:
SOLDER
Total Number of Contacts:
20

IPBT-110-H1-T-D-GP Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPBT-110-H1-T-D-GP connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPBT-110-H1-T-D-GP connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
Yes, the IPBT-110-H1-T-D-GP connector is compatible with lead-free soldering processes. Samtec recommends following their recommended soldering profile and ensuring that the connector is properly cleaned and prepared before soldering.
The maximum operating temperature for the IPBT-110-H1-T-D-GP connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to consult with Samtec's application engineers for specific temperature requirements and derating guidelines.
The IPBT-110-H1-T-D-GP connector is not designed for use in humid or wet environments. Samtec recommends using their sealed or waterproof connectors for applications that require protection from moisture.

Trust Checks

Community Provided

System Verified

Community Approved

IPBT-110-H1-T-D-GP Overview

Use the download button to access the IPBT-110-H1-T-D-GP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPBT-, or try a keyword search, such as Power Connectors
