IPBT-110-H1-T-D-K - SAMTEC

Description: Conn Power Mate Terminal Strip HDR 20 POS 4.19mm Solder ST Thru-Hole 20 Terminal 1 Port Automotive Tube

Download IPBT-110-H1-T-D-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPBT-110-H1-T-D-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

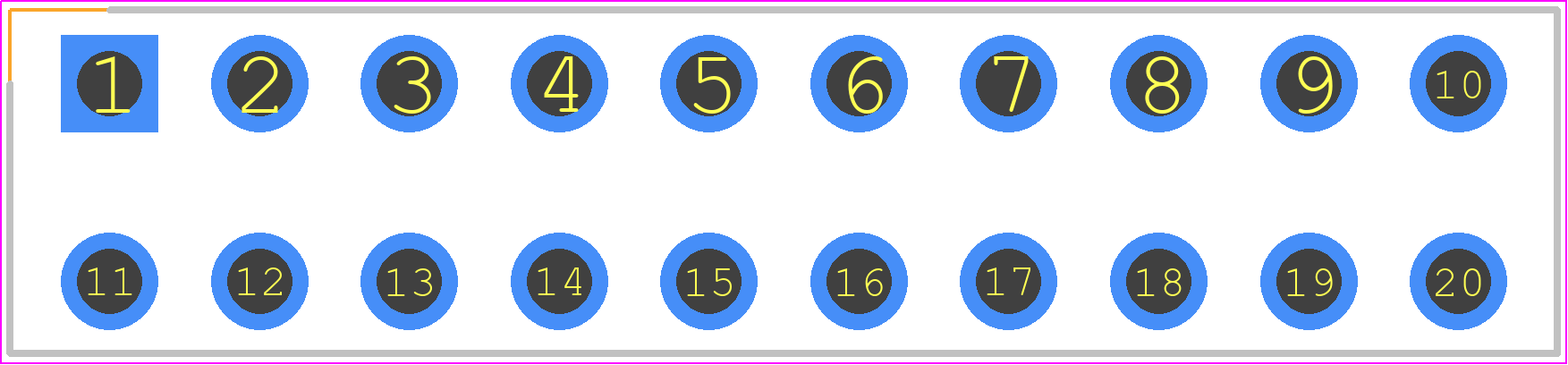

IPBT-110-H1-T-D-K - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - IPBT-110-H1-T-D-K
click to zoom
3D Models
IPBT-110-H1-T-D-K - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - IPBT-110-H1-T-D-K
click to zoom

IPBT-110-H1-T-D-K Details

  • Manufacturer Part Number:

    IPBT-110-H1-T-D-K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.45

  • Additional Feature:

    POLARIZED, SHROUDED

  • Body Breadth:

    0.424 inch

  • Body Length:

    1.703 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P20

  • Contact Finish Mating:

    MATTE TIN OVER NICKEL (50)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA, UL

  • Terminal Length:

    0.13 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

IPBT-110-H1-T-D-K Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5-1.5 N·m (4-12 in·lb) for the screws on the IPBT-110-H1-T-D-K connector.
  • Yes, the IPBT-110-H1-T-D-K connector is designed to withstand high-vibration environments, but it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application guidance.
  • The maximum operating temperature for the IPBT-110-H1-T-D-K connector is 125°C (257°F), but it's recommended to derate the temperature based on the specific application and environment.
  • The IPBT-110-H1-T-D-K connector is not designed for use in humid or wet environments. If your application requires exposure to moisture, consider using a connector with a higher IP rating or consult with Samtec for custom solutions.
  • The recommended mating cycle for the IPBT-110-H1-T-D-K connector is 500-1000 cycles, depending on the specific application and environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPBT-110-H1-T-D-K Overview

Use the download button to access the IPBT-110-H1-T-D-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPBT-, or try a keyword search, such as Power Connectors
