Part Image

IPBT-112-H1-T-D-K - SAMTEC

Description: Power to the Board .165" Power Mate Isolated Power Terminal Strip

Download IPBT-112-H1-T-D-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPBT-112-H1-T-D-K - SAMTEC - PCB symbol
click to zoom

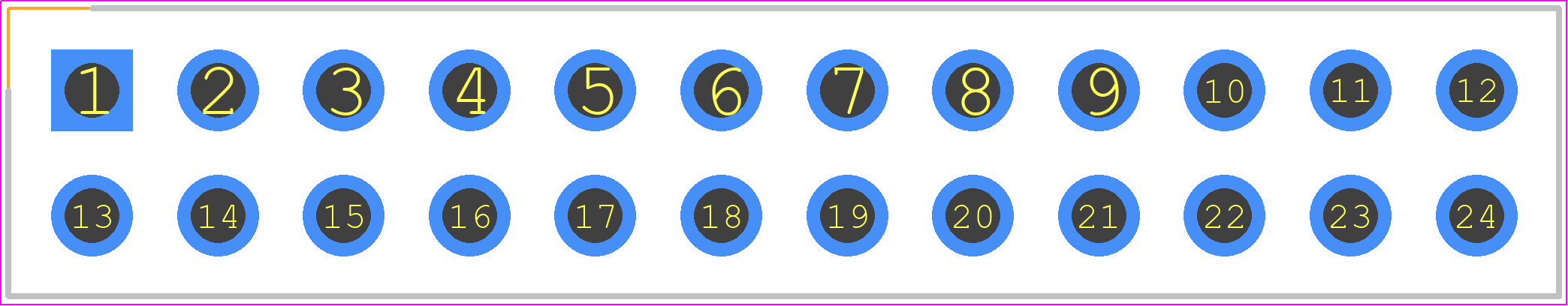

PCB Footprints
IPBT-112-H1-T-D-K - SAMTEC PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - IPBT-112-H1-T-D-K
click to zoom
3D Models
IPBT-112-H1-T-D-K - SAMTEC - 3D model - Header, Shrouded - Straight PTH Box - IPBT-112-H1-T-D-K
click to zoom

IPBT-112-H1-T-D-K Details

  • Manufacturer Part Number:

    IPBT-112-H1-T-D-K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • Body Breadth:

    0.424 inch

  • Body Length:

    2.033 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    SN ON NI

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    YES

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL, CSA

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

IPBT-112-H1-T-D-K Frequently Asked Questions (FAQs)

  • Samtec provides a recommended PCB layout and land pattern for the IPBT-112-H1-T-D-K connector in their Application Notes document (AN-10445). It's essential to follow these guidelines to ensure proper mating and reliable connections.
  • According to Samtec's datasheet, the IPBT-112-H1-T-D-K connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 212°F) and humidity levels up to 95% RH (relative humidity) at 40°C (104°F).
  • Samtec specifies that the IPBT-112-H1-T-D-K connector is designed for up to 500 mating cycles, depending on the application and environmental factors.
  • Yes, Samtec recommends applying a torque of 0.5 N·m (0.37 lbf·in) when mating the IPBT-112-H1-T-D-K connector. It's essential to follow proper mating and unmating procedures to prevent damage to the connector or PCB.
  • Samtec recommends using 24 AWG to 30 AWG wire with a maximum insulation diameter of 1.3 mm (0.051 in) for the IPBT-112-H1-T-D-K connector. It's essential to follow these guidelines to ensure reliable connections and prevent damage to the connector or wire.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPBT-112-H1-T-D-K Overview

Use the download button to access the IPBT-112-H1-T-D-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPBT-, or try a keyword search, such as Headers and Edge Type Connectors
