The maximum operating temperature range for the IPG16N10S4-61 is -40°C to 150°C.
To ensure reliability, it's essential to follow the recommended thermal management guidelines, including proper heat sinking, thermal interface materials, and airflow management.
The recommended gate resistor value for the IPG16N10S4-61 is typically in the range of 10 ohms to 22 ohms, depending on the specific application and switching frequency.
Yes, the IPG16N10S4-61 is suitable for high-frequency switching applications up to 100 kHz, but it's essential to consider the device's switching losses, thermal management, and PCB layout to ensure reliable operation.
To protect the IPG16N10S4-61, it's recommended to use overvoltage protection devices, such as TVS diodes or zener diodes, and overcurrent protection devices, such as fuses or current sensors, in conjunction with proper PCB layout and thermal management.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPG16N10S4-61 Overview

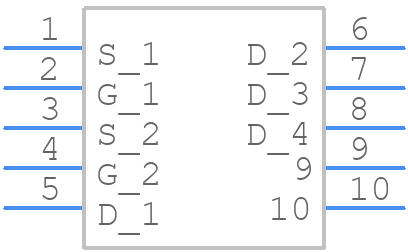

Use the download button to access the IPG16N10S4-61 schematic symbol, PCB footprint, and 3D model.
