IPG16N10S461AATMA1 - Infineon

Description: MOSFET MOSFET_(75V 120V(

Download IPG16N10S461AATMA1 Model

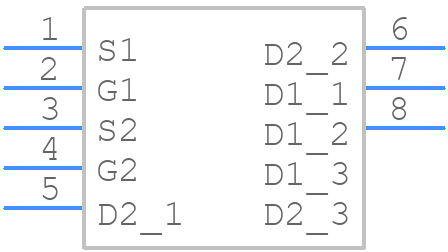

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPG16N10S461AATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-10_2016
click to zoom

IPG16N10S461AATMA1 Details

  • Manufacturer Part Number:

    IPG16N10S461AATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    33 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    16 A

  • Drain-source On Resistance-Max:

    0.061 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    64 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG16N10S461AATMA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature for IPG16N10S461AATMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate it at a lower temperature to ensure reliability and longevity.
  • Proper cooling is crucial for the IGBT's reliability. Ensure good thermal contact between the IGBT and the heat sink, and use a suitable thermal interface material. The heat sink should be designed to dissipate the maximum expected power loss.
  • The recommended gate resistor value depends on the specific application and switching frequency. A typical value is between 10 ohms and 100 ohms. However, it's recommended to consult the application note or contact Infineon's support team for specific guidance.
  • Yes, IPG16N10S461AATMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the IGBTs are properly matched, and the gate drive circuitry is designed to handle the parallel configuration.
  • The recommended dead time depends on the specific application and switching frequency. A typical dead time is between 100 ns and 500 ns. However, it's recommended to consult the application note or contact Infineon's support team for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPG16N10S461AATMA1 Overview

Use the download button to access the IPG16N10S461AATMA1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IPG16, or try a keyword search, such as Power Field-Effect Transistors
