IPG20N04S4-12 - Infineon

Description: Infineon IPG20N04S4-12 Dual N-channel MOSFET Transistor, 20 A, 40 V, 8-Pin TDSON

Download IPG20N04S4-12 Model

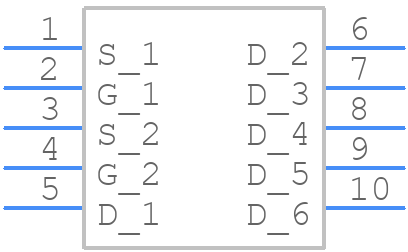

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPG20N04S4-12 - Infineon PCB footprint - Other - Other - IPG20N04S4-12-1
click to zoom
3D Models
IPG20N04S4-12 - Infineon  - 3D model - Other - IPG20N04S4-12-1
click to zoom

IPG20N04S4-12 Details

  • Manufacturer Part Number:

    IPG20N04S4-12

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Avalanche Energy Rating (Eas):

    80 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0122 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    41 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N04S4-12 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPG20N04S4-12 is -40°C to 150°C.
  • To ensure proper cooling, a heat sink with a thermal resistance of less than 10 K/W is recommended. Additionally, the device should be mounted on a PCB with a thermal via to dissipate heat efficiently.
  • The recommended gate resistor value for the IPG20N04S4-12 is between 10 ohms and 100 ohms, depending on the specific application and switching frequency.
  • Yes, the IPG20N04S4-12 is suitable for high-reliability applications, such as automotive and industrial systems, due to its robust design and high-quality manufacturing process.
  • To protect the IPG20N04S4-12 from ESD, handle the device with an anti-static wrist strap or mat, and ensure that the PCB and components are properly grounded.
