The maximum junction temperature for IPG20N04S409ATMA1 is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation.
To ensure the MOSFET is fully turned on, the gate-source voltage (Vgs) should be at least 10V, and the gate current should be sufficient to charge the gate capacitance quickly. A gate resistor value between 10Ω to 100Ω is recommended.
For optimal performance, it's recommended to use a PCB layout with a low-inductance path for the drain and source pins. Keep the drain and source traces as short and wide as possible, and use a solid ground plane to reduce electromagnetic interference (EMI).
Yes, the IPG20N04S409ATMA1 is suitable for high-frequency switching applications up to 100 kHz. However, it's essential to consider the MOSFET's switching losses, gate charge, and parasitic capacitances when designing the circuit.
To protect the MOSFET from overvoltage and overcurrent, consider adding a voltage clamp or a zener diode to limit the voltage across the MOSFET. Additionally, use a current sense resistor and a fuse or a current limiter to prevent overcurrent conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPG20N04S409ATMA1 Overview

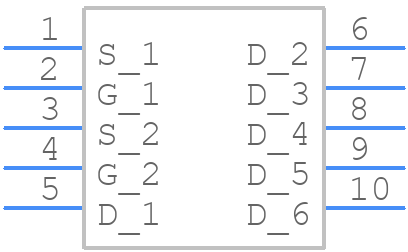

Use the download button to access the IPG20N04S409ATMA1 schematic symbol, PCB footprint, and 3D model.
