IPG20N04S4L08ATMA1 - Infineon

Description: MOSFET N-Ch 40V 20A TDSON-8 OptiMOS-T2

Download IPG20N04S4L08ATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

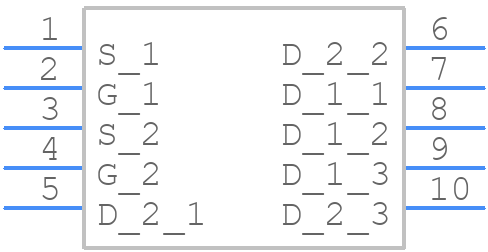

Symbol
IPG20N04S4L08ATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IPG20N04S4L08ATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-4_1
click to zoom
3D Models
IPG20N04S4L08ATMA1 - Infineon - 3D model - Other - PG-TDSON-8-4_1
click to zoom

IPG20N04S4L08ATMA1 Details

  • Manufacturer Part Number:

    IPG20N04S4L08ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.29.00.95

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Avalanche Energy Rating (Eas):

    145 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0082 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N04S4L08ATMA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the IPG20N04S4L08ATMA1 is 175°C, as specified in the datasheet.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good thermal contact between the device and the heat sink. Additionally, the device should be mounted on a PCB with good thermal conductivity.
  • The recommended gate resistor value for the IPG20N04S4L08ATMA1 is between 10 Ω and 100 Ω, depending on the specific application and switching frequency.
  • Yes, the IPG20N04S4L08ATMA1 is a high-reliability device, with a failure rate of ≤ 10 FIT (failures per 10^9 hours) at 125°C, making it suitable for high-reliability applications.
  • To protect the device from ESD, handle the device by the body, use an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or container.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPG20N04S4L08ATMA1 Overview

Use the download button to access the IPG20N04S4L08ATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPG20, or try a keyword search, such as Power Field-Effect Transistors
