IPG20N04S4L11AATMA1 - Infineon

Description: OptiMOS™-T2 Power-Transistor, Dual N-Channel

Download IPG20N04S4L11AATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

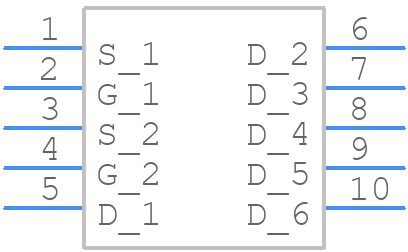

Symbol
IPG20N04S4L11AATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IPG20N04S4L11AATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-10 dual SS08 (PG-TDSON-8)
click to zoom
3D Models
IPG20N04S4L11AATMA1 - Infineon - 3D model - Other - PG-TDSON-8-10 dual SS08 (PG-TDSON-8)
click to zoom

IPG20N04S4L11AATMA1 Details

  • Manufacturer Part Number:

    IPG20N04S4L11AATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    3

  • Additional Feature:

    LOGIC LEVEL COMPATIBLE

  • Avalanche Energy Rating (Eas):

    80 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    40 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0116 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N04S4L11AATMA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature (Tj) for the IPG20N04S4L11AATMA1 is 175°C, as specified in the datasheet.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of ≤ 10 K/W, and ensuring good airflow around the device. The datasheet provides thermal resistance values for different heat sink configurations.
  • The recommended gate resistor value for the IPG20N04S4L11AATMA1 is between 10 Ω and 100 Ω, depending on the specific application and switching frequency. A higher gate resistor value can help reduce electromagnetic interference (EMI).
  • Yes, the IPG20N04S4L11AATMA1 is qualified according to AEC-Q101, which makes it suitable for high-reliability applications such as automotive systems.
  • To protect the device from ESD, handle the device by the body or use an anti-static wrist strap, and ensure that the device is stored in an anti-static bag or container. The datasheet provides additional ESD protection guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPG20N04S4L11AATMA1 Overview

Use the download button to access the IPG20N04S4L11AATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPG20, or try a keyword search, such as Power Field-Effect Transistors
