The recommended PCB footprint for IPG20N06S2L50AATMA1 is a TO-220 package with a minimum pad size of 5.5mm x 4.5mm and a thermal pad size of 3.5mm x 3.5mm. It's recommended to follow the PCB layout guidelines provided in the Infineon application note AN2013-03-01.
To ensure the reliability of IPG20N06S2L50AATMA1 in high-temperature applications, it's recommended to follow the derating guidelines provided in the datasheet, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement over-temperature protection.
Yes, IPG20N06S2L50AATMA1 can be used in a parallel configuration to increase current handling. However, it's essential to ensure that the devices are properly matched, and the gate drive signals are synchronized to prevent current imbalance and oscillations. It's recommended to follow the guidelines provided in the Infineon application note AN2013-03-01 for parallel operation of power MOSFETs.
The recommended gate drive voltage for IPG20N06S2L50AATMA1 is between 10V and 15V. A higher gate drive voltage can reduce the switching losses, but it may also increase the gate charge and oscillations. It's recommended to optimize the gate drive voltage based on the specific application requirements and PCB layout.
IPG20N06S2L50AATMA1 has an integrated ESD protection diode, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the PCB design for added protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPG20N06S2L50AATMA1 Overview

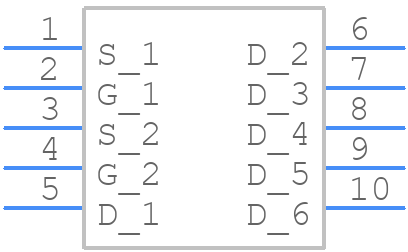

Use the download button to access the IPG20N06S2L50AATMA1 schematic symbol, PCB footprint, and 3D model.
