IPG20N06S2L65AATMA1 - Infineon

Description: MOSFET MOSFET

Download IPG20N06S2L65AATMA1 Model

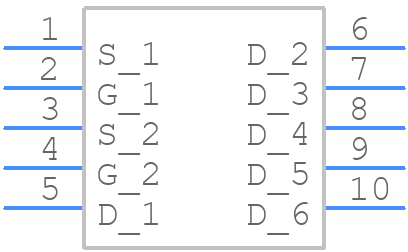

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPG20N06S2L65AATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-10 dual SS08 (PG-TDSON-8)
click to zoom
3D Models
IPG20N06S2L65AATMA1 - Infineon  - 3D model - Other - PG-TDSON-8-10 dual SS08 (PG-TDSON-8)
click to zoom

IPG20N06S2L65AATMA1 Details

  • Manufacturer Part Number:

    IPG20N06S2L65AATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Austria, Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    40 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    55 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.065 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    50 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    43 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N06S2L65AATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPG20N06S2L-65AATMA1 is -55°C to 175°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good thermal contact between the MOSFET and heat sink.
  • The recommended gate resistor value for the IPG20N06S2L-65AATMA1 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, the IPG20N06S2L-65AATMA1 is suitable for high-frequency switching applications up to 1 MHz, but the user should ensure that the gate drive circuitry is capable of handling the high-frequency switching.
  • The user should implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the MOSFET. A zener diode or transient voltage suppressor (TVS) can be used for OVP, and a current sense resistor or fuse can be used for OCP.
