IPG20N06S415ATMA2 - Infineon

Description: Mosfet Array 2 N-Channel (Dual) 60V 20A 50W Surface Mount PG-TDSON-8-4

Download IPG20N06S415ATMA2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

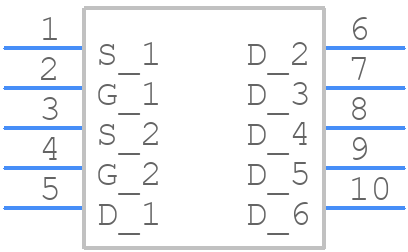

Symbol
IPG20N06S415ATMA2 - Infineon - PCB symbol
click to zoom
PCB Footprints
IPG20N06S415ATMA2 - Infineon PCB footprint - Other - Other - PG-TDSON-8-4 -2022
click to zoom
3D Models
IPG20N06S415ATMA2 - Infineon - 3D model - Other - PG-TDSON-8-4 -2022
click to zoom

IPG20N06S415ATMA2 Details

  • Manufacturer Part Number:

    IPG20N06S415ATMA2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    90 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.0155 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N06S415ATMA2 Frequently Asked Questions (FAQs)

  • The maximum junction temperature for IPG20N06S415ATMA2 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation.
  • To ensure the MOSFET is fully turned on, the gate-source voltage (Vgs) should be at least 10V, and the gate current should be sufficient to charge the gate capacitance quickly. A gate resistor value between 10Ω to 100Ω is recommended.
  • For optimal performance, it's recommended to use a PCB layout that minimizes the parasitic inductance and resistance. A compact layout with short leads and a solid ground plane is recommended. The source pin should be connected to the PCB ground plane using a low-inductance path.
  • Yes, the IPG20N06S415ATMA2 is suitable for high-frequency switching applications up to 100 kHz. However, the user should ensure that the gate drive circuitry is capable of providing a fast rise and fall time to minimize switching losses.
  • To protect the MOSFET from overvoltage and overcurrent, it's recommended to use a voltage clamp circuit and a current sense resistor. A fuse or a current limiter can also be used to prevent overcurrent conditions.
