The maximum operating temperature range for the IPG20N06S4L11AATMA1 is -55°C to 175°C.
To minimize switching losses, ensure the gate drive voltage is sufficient (typically 10-15V), and the gate resistance is minimized (e.g., using a low-impedance gate driver).
To minimize parasitic inductance, use a compact PCB layout with short, wide traces for the drain, source, and gate connections. Keep the gate and source connections close together, and use a ground plane to reduce inductance.
Yes, the IPG20N06S4L11AATMA1 is suitable for high-frequency switching applications up to several hundred kHz, but ensure proper gate drive and PCB layout to minimize switching losses and parasitic inductance.
Use a suitable voltage regulator or overvoltage protection circuit to prevent voltage spikes, and consider adding overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IPG20N06S4L11AATMA1 Overview

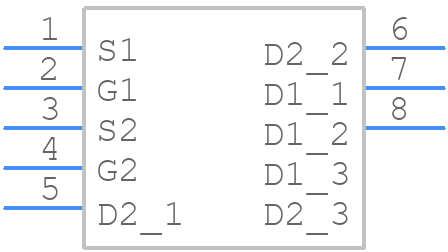

Use the download button to access the IPG20N06S4L11AATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPG20,
or try a keyword search, such as Power Field-Effect Transistors
