IPG20N06S4L26AATMA1 - Infineon

Description: MOSFET N-Ch 55V 20A TDSON-8

Download IPG20N06S4L26AATMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

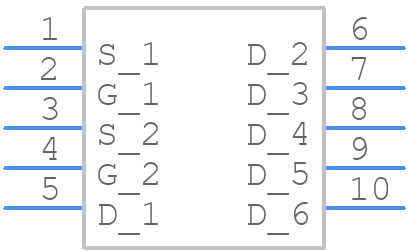

Symbol
IPG20N06S4L26AATMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
IPG20N06S4L26AATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-10
click to zoom
3D Models
IPG20N06S4L26AATMA1 - Infineon - 3D model - Other - PG-TDSON-8-10
click to zoom

IPG20N06S4L26AATMA1 Details

  • Manufacturer Part Number:

    IPG20N06S4L26AATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    35 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    60 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.026 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N06S4L26AATMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IPG20N06S4L26AATMA1 is -55°C to 175°C.
  • Proper cooling can be achieved by using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good thermal contact between the MOSFET and the heat sink.
  • The recommended gate resistor value for the IPG20N06S4L26AATMA1 is between 10Ω and 100Ω, depending on the specific application and switching frequency.
  • Yes, the IPG20N06S4L26AATMA1 is suitable for high-frequency switching applications up to 1 MHz, but the user should ensure that the gate drive circuitry is capable of handling the high-frequency switching.
  • The user should implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the MOSFET. This can be achieved using zener diodes, TVS diodes, and current sense resistors.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPG20N06S4L26AATMA1 Overview

Use the download button to access the IPG20N06S4L26AATMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IPG20, or try a keyword search, such as Power Field-Effect Transistors
