IPG20N10S4L-22A - Infineon

Description: MOSFET MOSFET_(75V,120V(

Download IPG20N10S4L-22A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

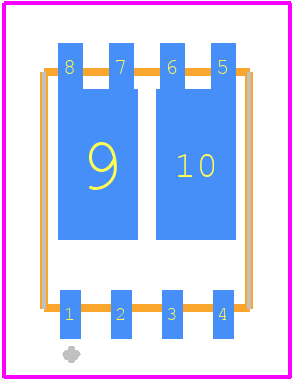

IPG20N10S4L-22A - Infineon PCB footprint - Other - Other - PG-TDSON-8-10
click to zoom
3D Models
IPG20N10S4L-22A - Infineon  - 3D model - Other - PG-TDSON-8-10
click to zoom

IPG20N10S4L-22A Details

  • Manufacturer Part Number:

    IPG20N10S4L-22A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    9

  • Avalanche Energy Rating (Eas):

    130 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.022 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N10S4L-22A Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the IPG20N10S4L-22A is 175°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling is crucial for the IPG20N10S4L-22A. Ensure good thermal contact between the device and the heat sink, and use a thermal interface material if necessary. Also, consider the airflow and thermal design of the system to prevent hotspots.
  • The recommended gate resistor value for the IPG20N10S4L-22A is typically in the range of 10-20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. Consult the datasheet and application notes for more information.
  • Yes, the IPG20N10S4L-22A is suitable for high-reliability applications. Infineon Technologies AG follows rigorous quality and testing procedures to ensure the device meets the required standards. However, it's essential to follow proper design, manufacturing, and testing procedures to ensure the device operates within its specifications.
  • To protect the IPG20N10S4L-22A from overvoltage and overcurrent, use a suitable voltage regulator and current limiter in the system design. Additionally, consider using protective components such as TVS diodes and fuses to prevent damage from voltage spikes and surges.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPG20N10S4L-22A Overview

Use the download button to access the IPG20N10S4L-22A schematic symbol, PCB footprint, and 3D model.
