IPG20N10S4L22ATMA1 - Infineon

Description: MOSFET MOSFET

Download IPG20N10S4L22ATMA1 Model

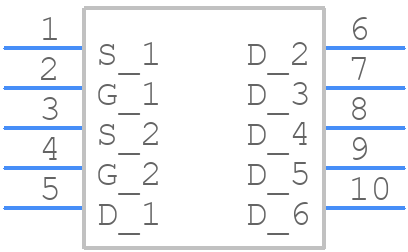

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPG20N10S4L22ATMA1 - Infineon PCB footprint - Other - Other - PG-TDSON-8-4
click to zoom

IPG20N10S4L22ATMA1 Details

  • Manufacturer Part Number:

    IPG20N10S4L22ATMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    130 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.022 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    84 pF

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    60 W

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N10S4L22ATMA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature for the IPG20N10S4L22ATMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
  • Proper cooling is crucial for the IPG20N10S4L22ATMA1. Ensure good thermal contact between the device and the heat sink, and use a suitable thermal interface material. The heat sink should be designed to dissipate the maximum power dissipation of the device.
  • The recommended gate resistor value for the IPG20N10S4L22ATMA1 is between 10 Ω to 20 Ω. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the application note or contact Infineon support for more information.
  • Yes, the IPG20N10S4L22ATMA1 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and assembly guidelines to ensure the device operates within its specified parameters.
  • To protect the IPG20N10S4L22ATMA1 from ESD, handle the device by the body, not the leads. Use an ESD wrist strap or mat, and ensure the workspace is ESD-safe. Avoid touching the device's pins or leads, and use ESD-protective packaging during storage and transportation.
