IPG20N10S4L35AATMA1 - Infineon

Description: MOSFET MOSFET_(75V 120V(

Download IPG20N10S4L35AATMA1 Model

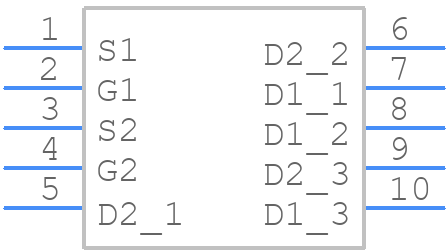

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IPG20N10S4L35AATMA1 - Infineon PCB footprint - Other - Other - IPG20N10S4L35AATMA1-1
click to zoom
3D Models
IPG20N10S4L35AATMA1 - Infineon  - 3D model - Other - IPG20N10S4L35AATMA1-1
click to zoom

IPG20N10S4L35AATMA1 Details

  • Manufacturer Part Number:

    IPG20N10S4L35AATMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    60 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    20 A

  • Drain-source On Resistance-Max:

    0.035 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    80 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Element Material:

    SILICON

IPG20N10S4L35AATMA1 Frequently Asked Questions (FAQs)

  • The maximum junction temperature is 175°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 150°C for reliable operation and to prevent thermal runaway.
  • Proper cooling is crucial for the IPG20N10S4L35AATMA1. Ensure good thermal contact between the device and the heat sink, and use a heat sink with a thermal resistance of less than 1°C/W. Also, consider using a thermal interface material to fill any gaps between the device and heat sink.
  • The recommended gate resistor value depends on the specific application and switching frequency. As a general guideline, a gate resistor value between 10 ohms and 100 ohms is suitable for most applications. However, it's recommended to consult the application note or contact Infineon support for specific guidance.
  • Yes, the IPG20N10S4L35AATMA1 is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To protect the IPG20N10S4L35AATMA1 from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the workspace and equipment are ESD-safe, and use ESD-protective packaging and storage materials. Also, consider using ESD-protection devices or circuits in the application.
