IPL1-105-01-F-S-RA-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

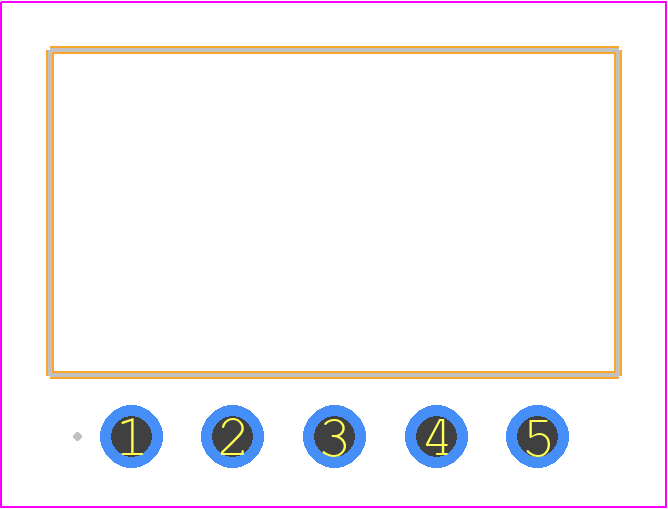

PCB Footprints

IPL1-105-01-F-S-RA-K - SAMTEC PCB footprint - Other - Other - IPL1-105-01-YYY-S-RA-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-105-01-F-S-RA-K
Part Number IPL1-105-01-F-S-RA-K
Manufacturer SAMTEC
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-105-01-YYY-S-RA-K
Released Date Apr 3, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-105-01-F-S-RA-K Details

Manufacturer Part Number:
IPL1-105-01-F-S-RA-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.24 inch
Body Depth:
0.32 inch
Body Length:
0.5 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD FLASH
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
5
UL Flammability Code:
94V-0

IPL1-105-01-F-S-RA-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on IPL1-105-01-F-S-RA-K is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPL1-105-01-F-S-RA-K is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand vibrations up to 20 G's (peak acceleration) in the frequency range of 10-2000 Hz.
The IPL1-105-01-F-S-RA-K has a mating cycle life of 500 cycles minimum, according to Samtec's specifications.
The IPL1-105-01-F-S-RA-K has an operating temperature range of -55°C to +125°C, making it suitable for use in high-temperature applications. However, it's essential to ensure that the connector is properly derated for high-temperature use.
While the IPL1-105-01-F-S-RA-K is designed for use with 1.57 mm thick PCBs, Samtec offers variations of this connector that can accommodate PCB thicknesses ranging from 0.8 mm to 2.36 mm. Consult Samtec's documentation or contact their support team for more information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-105-01-F-S-RA-K Overview

Use the download button to access the IPL1-105-01-F-S-RA-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
