IPL1-107-01-H-D-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

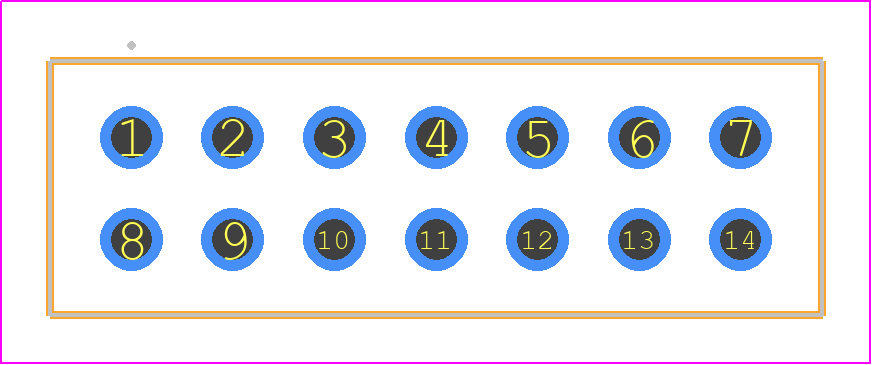

IPL1-107-01-H-D-K - SAMTEC PCB footprint - Other - Other - IPL1-107-01-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-107-01-H-D-K
Part Number IPL1-107-01-H-D-K
Manufacturer SAMTEC
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-107-01-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-107-01-H-D-K Details

Manufacturer Part Number:
IPL1-107-01-H-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
0.76 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
14
UL Flammability Code:
94V-0

IPL1-107-01-H-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on IPL1-107-01-H-D-K is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the IPL1-107-01-H-D-K is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand up to 20 Gs of vibration.
The IPL1-107-01-H-D-K has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
Yes, the IPL1-107-01-H-D-K is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The IPL1-107-01-H-D-K has an operating temperature range of -55°C to +125°C, making it suitable for a wide range of applications.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-107-01-H-D-K Overview

Use the download button to access the IPL1-107-01-H-D-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
