IPL1-108-01-L-D-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

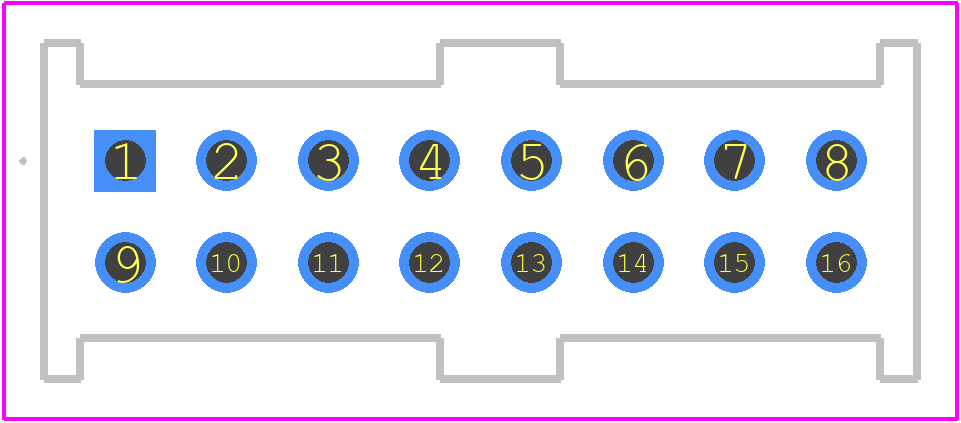

PCB Footprints

IPL1-108-01-L-D-K - SAMTEC PCB footprint - Other - Other - IPL1-108-01-L-D-K-4

click to zoom

3D Models

IPL1-108-01-L-D-K - SAMTEC - 3D model - Other - IPL1-108-01-L-D-K-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-108-01-L-D-K
Part Number IPL1-108-01-L-D-K
Manufacturer SAMTEC
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-108-01-L-D-K-4
Released Date Mar 8, 2019
Last Modified Date Jul 31, 2025 2:04 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-108-01-L-D-K Details

Manufacturer Part Number:
IPL1-108-01-L-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
0.86 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
16
UL Flammability Code:
94V-0

IPL1-108-01-L-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPL1-108-01-L-D-K connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the IPL1-108-01-L-D-K connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The maximum operating temperature for the IPL1-108-01-L-D-K connector is 125°C (257°F).
Yes, the IPL1-108-01-L-D-K connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance restrictions.
The IPL1-108-01-L-D-K connector is not designed for use in humid or wet environments. If exposure to moisture is a concern, consider using a connector with a higher IP rating or applying a conformal coating to the connector.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-108-01-L-D-K Overview

Use the download button to access the IPL1-108-01-L-D-K schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
