IPL1-110-01-L-S-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

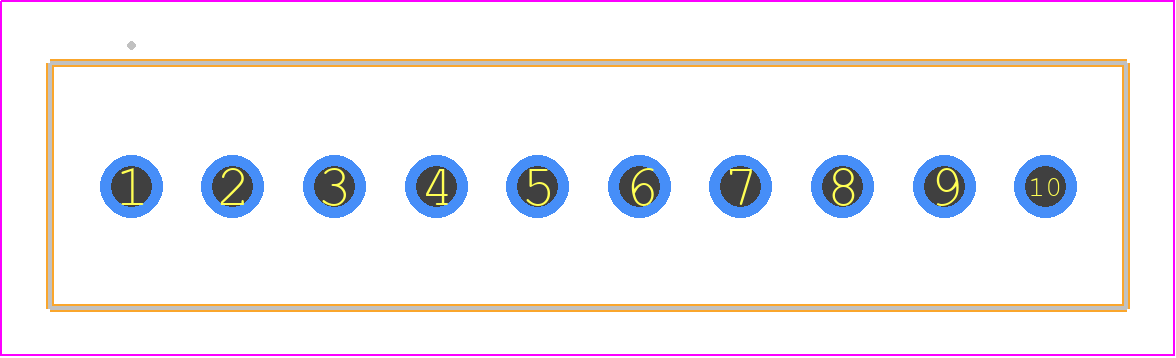

PCB Footprints

IPL1-110-01-L-S-K - SAMTEC PCB footprint - Other - Other - IPL1-110-01-YYY-S-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-110-01-L-S-K
Part Number IPL1-110-01-L-S-K
Manufacturer SAMTEC
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-110-01-YYY-S-K
Released Date Jun 27, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-110-01-L-S-K Details

Manufacturer Part Number:
IPL1-110-01-L-S-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
7.87
Additional Feature:
POLARIZED, SHROUDED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
10

IPL1-110-01-L-S-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on the IPL1-110-01-L-S-K connector is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the IPL1-110-01-L-S-K connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to consult with a Samtec representative for specific application requirements.
The maximum operating temperature for the IPL1-110-01-L-S-K connector is 125°C (257°F).
Yes, the IPL1-110-01-L-S-K connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance restrictions.
The IPL1-110-01-L-S-K connector is not designed for use in humid or wet environments. If exposure to moisture is a concern, consider using a connector with a waterproof or water-resistant rating, such as Samtec's IP67-rated connectors.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

IPL1-110-01-L-S-K Overview

Use the download button to access the IPL1-110-01-L-S-K schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
