IPL1-110-02-F-D-K - SAMTEC

Description: 20 Position, .100" Mini Mate® Isolated Power Terminal Header

Download IPL1-110-02-F-D-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
IPL1-110-02-F-D-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

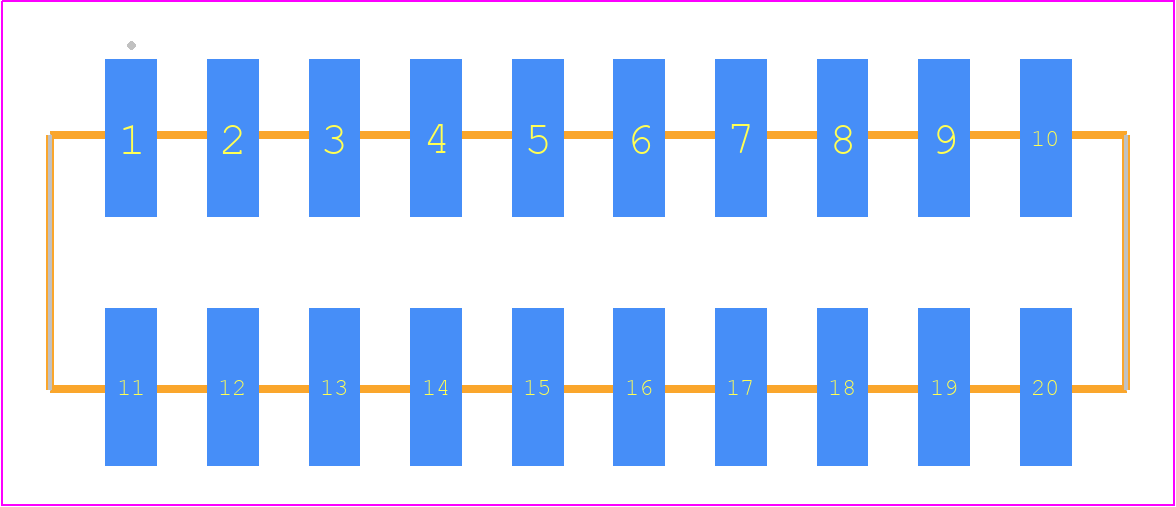

IPL1-110-02-F-D-K - SAMTEC PCB footprint - Other - Other - IPL1-110-02-YYY-D-K
click to zoom

IPL1-110-02-F-D-K Details

  • Manufacturer Part Number:

    IPL1-110-02-F-D-K

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT (POWER): 4.8A

  • Body Breadth:

    0.25 inch

  • Body Depth:

    0.345 inch

  • Body Length:

    1.06 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

IPL1-110-02-F-D-K Frequently Asked Questions (FAQs)

  • The recommended mating sequence for IPL1-110-02-F-D-K is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the IPL1-110-02-F-D-K is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
  • The IPL1-110-02-F-D-K has an operating temperature range of -55°C to 125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and environment.
  • Yes, the IPL1-110-02-F-D-K is designed for automated assembly processes, including pick-and-place and robotic assembly. However, it's essential to consult with Samtec Inc or a qualified assembly partner for specific guidance on assembly procedures.
  • Samtec Inc recommends using a soft, dry brush or a lint-free cloth to remove any debris or contaminants from the connector. Avoid using harsh chemicals or solvents, as they may damage the connector's materials.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IPL1-110-02-F-D-K Overview

Use the download button to access the IPL1-110-02-F-D-K schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like IPL1-, or try a keyword search, such as Power Connectors
