IPL1-111-01-F-D-K footprint, schematic symbol and 3D model by SAMTEC

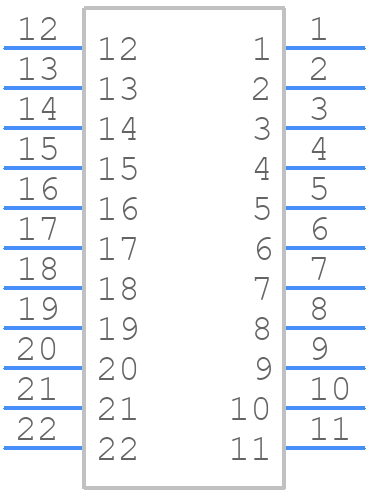

Symbol

click to zoom

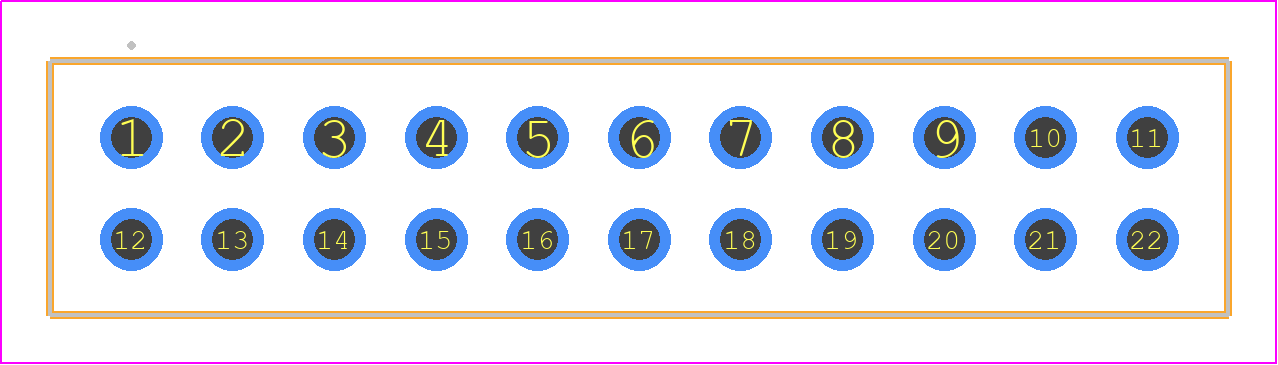

PCB Footprints

IPL1-111-01-F-D-K - SAMTEC PCB footprint - Other - Other - IPL1-111-01-YYY-D-K

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for IPL1-111-01-F-D-K
Part Number IPL1-111-01-F-D-K
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - IPL1-111-01-YYY-D-K
Released Date Jun 27, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

IPL1-111-01-F-D-K Details

Manufacturer Part Number:
IPL1-111-01-F-D-K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7.89
Additional Feature:
RATED CURRENT (POWER): 4.8A
Body Breadth:
0.25 inch
Body Depth:
0.32 inch
Body Length:
1.16 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
MALE
Contact Style:
SQ PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
22
UL Flammability Code:
94V-0

IPL1-111-01-F-D-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on IPL1-111-01-F-D-K is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the IPL1-111-01-F-D-K is designed to meet the requirements of high-vibration applications, such as those found in industrial, automotive, and aerospace environments.
The operating temperature range for IPL1-111-01-F-D-K is -55°C to +125°C, making it suitable for a wide range of applications.
Yes, the IPL1-111-01-F-D-K is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
The mating cycle life of IPL1-111-01-F-D-K is 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
